SNHN 43ENEN:8215
SNHN 43ENEN:8215

SNHN 43ENEN:8215

UGC DOR6753410
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.11 CAD - $20.11 CAD
$20.11 CAD
$20.11 CAD - $20.11 CAD
$20.11 CAD

Vendu en lots de : 10

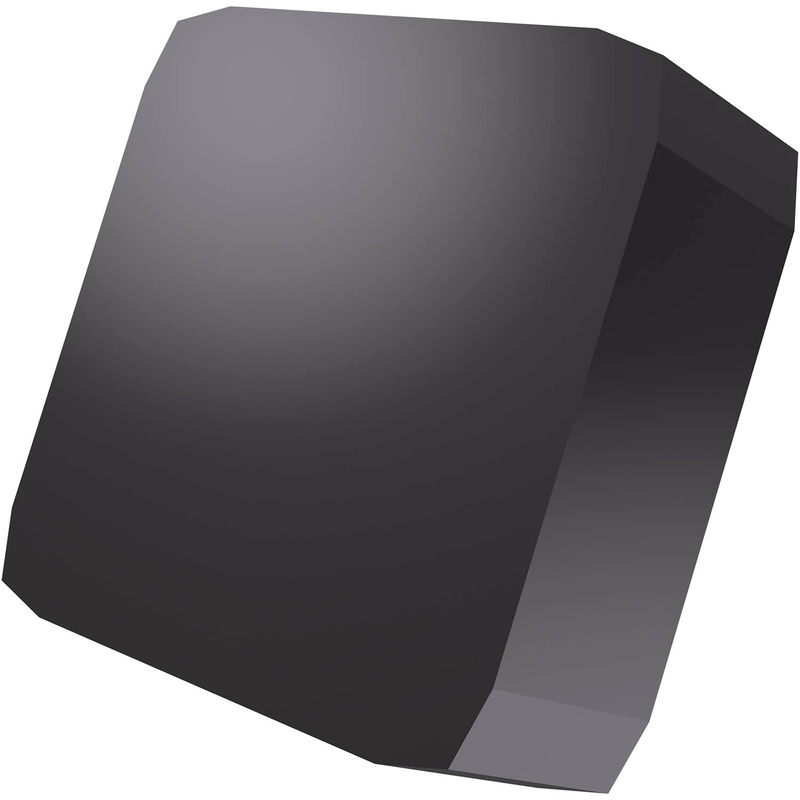

Plaquette de fraisage double face SNHN 1204 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 0,3543", avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-H avec arêtes de coupe arrondies, carbure WC-Co à grain fin revêtu PVD 8215 dans la gamme de grades ISO K10-K25 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 43ENEN:8215
Product Name (ISO)SNHN 1204ENEN:8215
Grade8215
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753410
Product FamilySNHN
Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6753410
EAN3603602887764
File Type Download

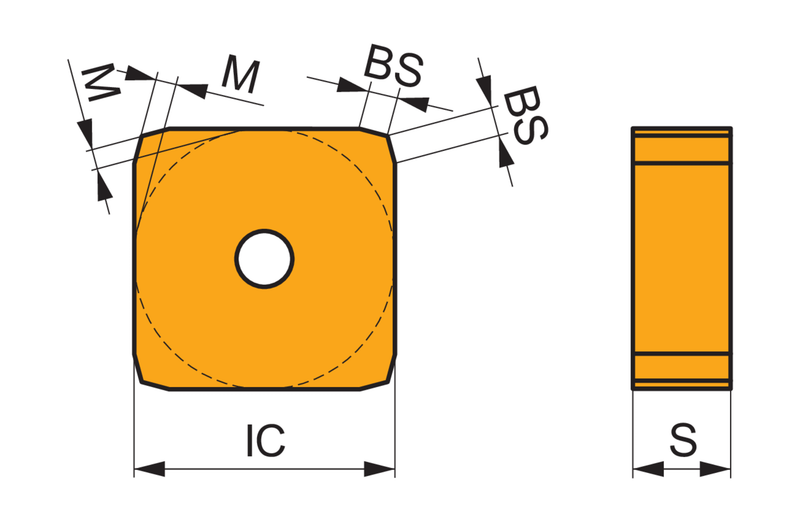

SNHN 43ENEN:8215 — Line Drawing PDF Download
