SNHN 53ENEN:8215
SNHN 53ENEN:8215

SNHN 53ENEN:8215

UGC DOR6753411
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.19 CAD - $25.19 CAD
$25.19 CAD
$25.19 CAD - $25.19 CAD
$25.19 CAD

Vendu en lots de : 10

Plaquette de fraisage double face SNHN 1504 avec surface de dégagement plane, carrée pour une profondeur de coupe maximale de 13,5 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-H avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD 8215 dans la gamme de grades ISO K10-K25 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 53ENEN:8215
Product Name (ISO)SNHN 1504ENEN:8215
Grade8215
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753411
Product FamilySNHN
Insert Geometry
Insert DesignSNHS
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number6753411
EAN3603602887771
File Type Download

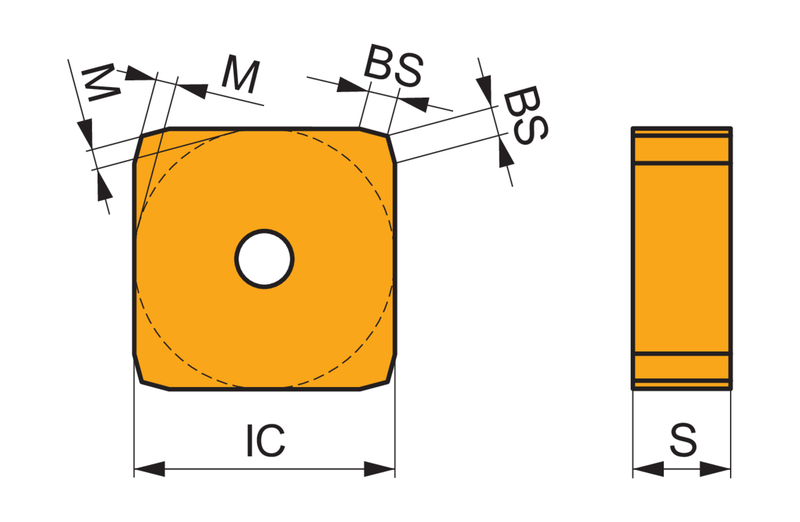

SNHN 53ENEN:8215 — Line Drawing PDF Download
