SNMT 1205AZSR-R:8215
SNMT 1205AZSR-R:8215

SNMT 1205AZSR-R:8215

UGC DOR6753417
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.86 CAD - $27.86 CAD
$27.86 CAD
$27.86 CAD - $27.86 CAD
$27.86 CAD

Vendu en lots de : 10

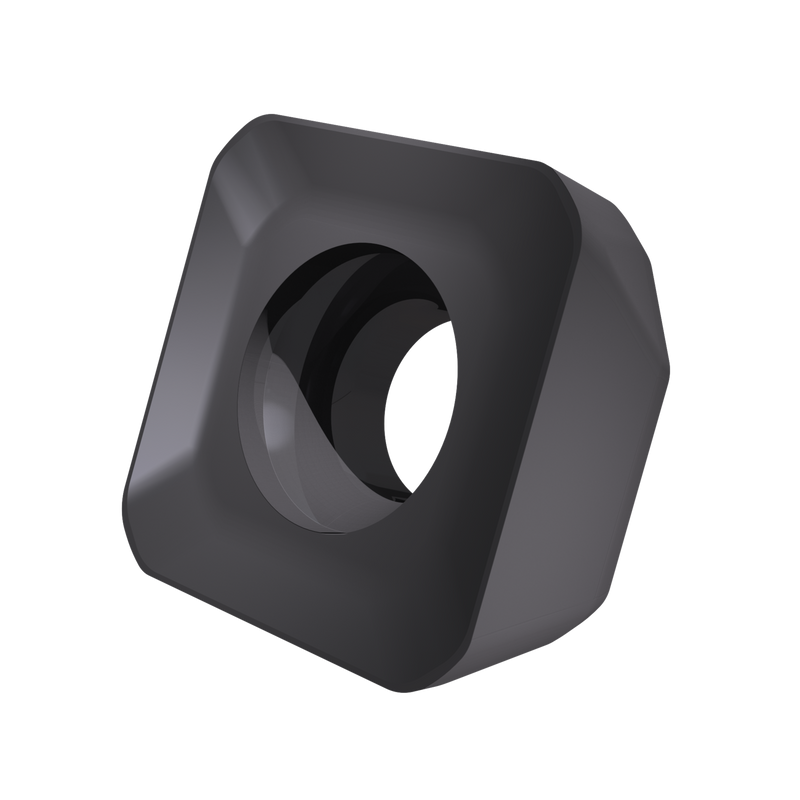

Plaquette de fraisage simple face SNMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-M et une géométrie R avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD 8215 pour l'usinage avec les fraises à surfacer SSN12Z

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMT 1205AZSR-R:8215
Grade8215
Chipbreaker (CBMD)R
Product Number6753417
Product FamilySNMT 12

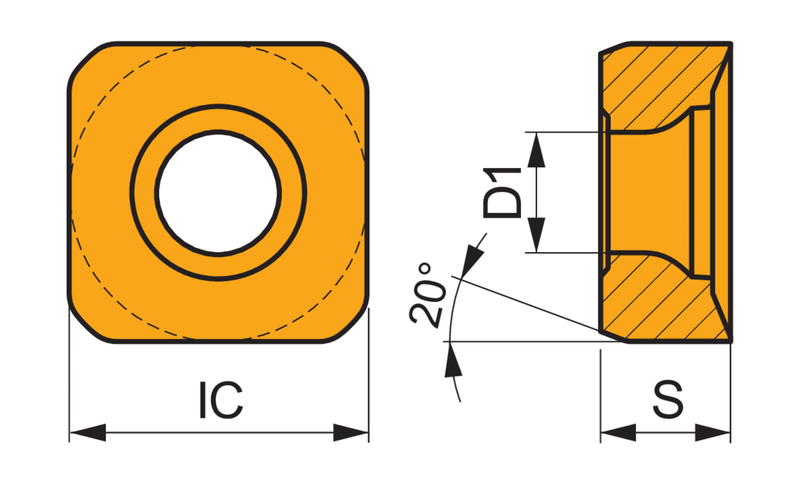

Insert Geometry
Insert DesignTMNS
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6753417
EAN3603602887832
File Type Download
SNMT 1205AZSR-R:8215 — Line Drawing PDF Download
