SOMT 09T308-M:8215
SOMT 09T308-M:8215

SOMT 09T308-M:8215

UGC DOR6753419
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.93 CAD - $19.93 CAD
$19.93 CAD
$19.93 CAD - $19.93 CAD
$19.93 CAD

Vendu en lots de : 10

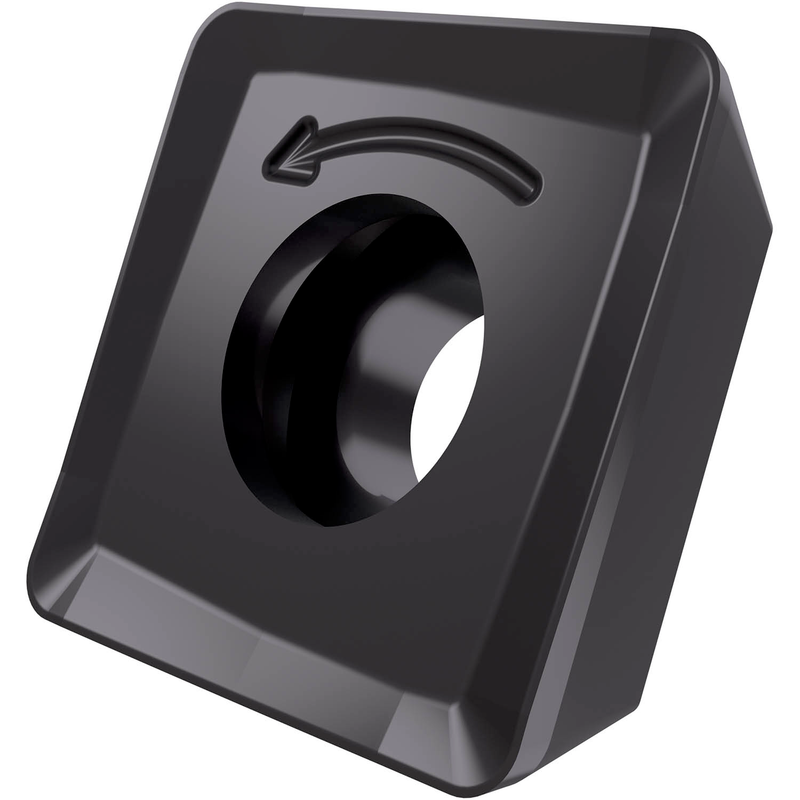

Plaquette de fraisage simple face SOMT 09T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 8 mm, avec rayon de coin de 0,8 mm, une précision d'indexation selon la classe de tolérance ISO-M et la géométrie M, en carbure WC-Co à grains fins revêtu PVD 8215 dans la gamme de nuances ISO K10-K25 pour l'usinage de la fonte avec des fraises à chanfreiner N-SSO09 ou des fraises à épaulement SSO09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SOMT 09T308-M:8215
Grade8215
Chipbreaker (CBMD)M
Product Number6753419
Product FamilySOMT 09

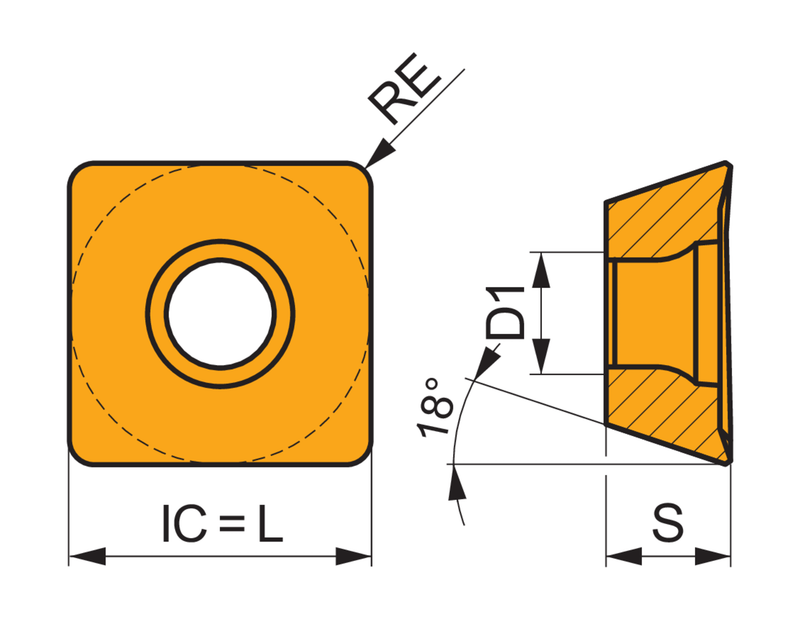

Insert Geometry
Insert DesignTSOM
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.376"
Inscribed Circle Dia. — mm (IC)9.55 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6753419
EAN3603602887856
File Type Download
SOMT 09T308-M:8215 — Line Drawing PDF Download
