TPKN 43PDER:8215
TPKN 43PDER:8215

TPKN 43PDER:8215

UGC DOR6753422
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.71 CAD - $19.71 CAD
$19.71 CAD
$19.71 CAD - $19.71 CAD
$19.71 CAD

Vendu en lots de : 10

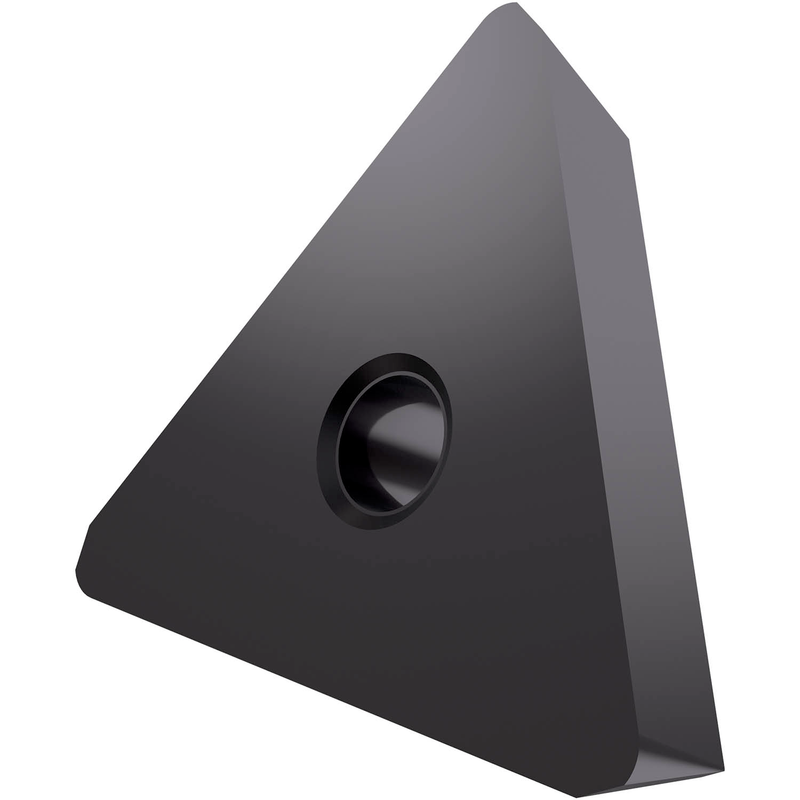

Plaquette de fraisage simple face TPKN 2204 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 17 mm, avec un rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD 8215 dans la gamme de nuance ISO K10-K25 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 43PDER:8215
Product Name (ISO)TPKN 2204PDER:8215
Grade8215
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753422
Product FamilyTPKN

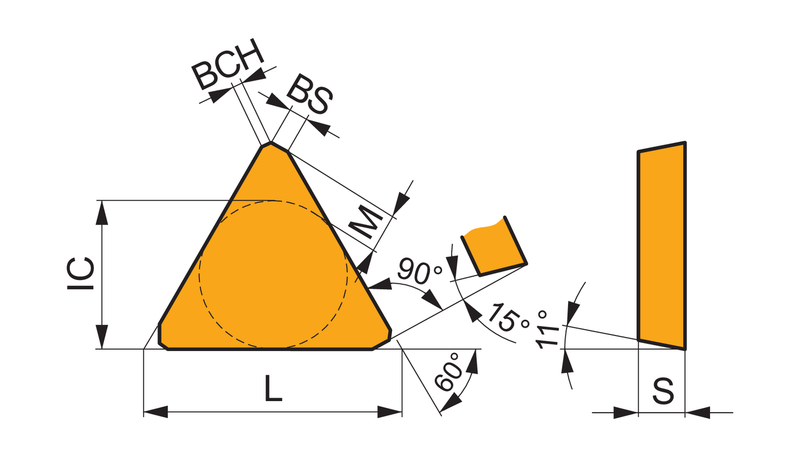

Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number6753422
EAN3603602887887
File Type Download
TPKN 43PDER:8215 — Line Drawing PDF Download
