TPU 321:8215
TPU 321:8215

TPU 321:8215

UGC DOR6753423
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Vendu en lots de : 10

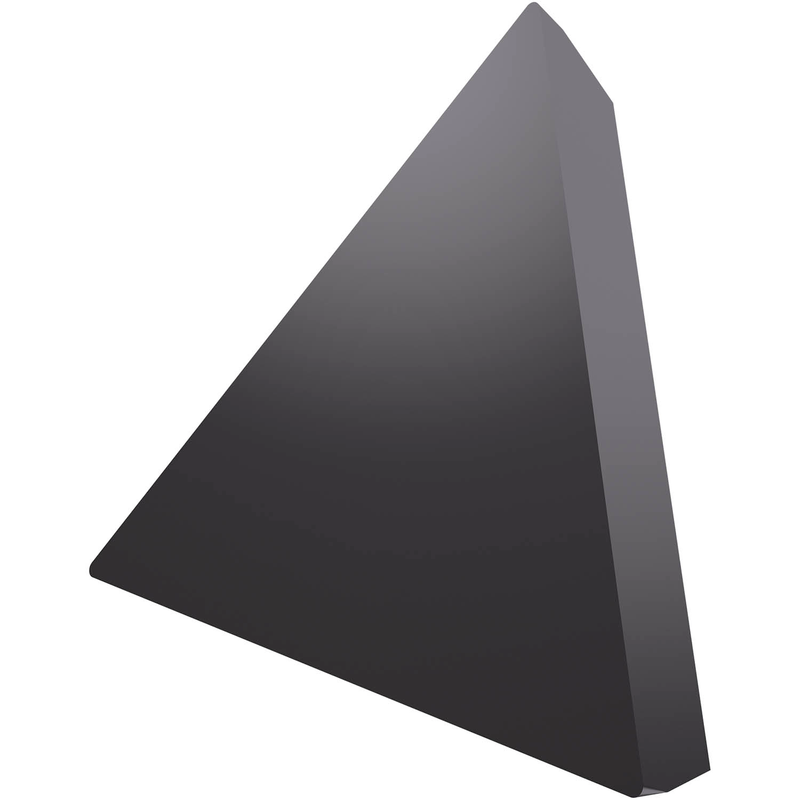

Plaquette de fraisage simple face TPUN 1603 à plaquette de coupe plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec rayon de coin de 0,4 mm, une précision d'indexage selon la classe de tolérance ISO-U, en carbure WC-Co à grain fin revêtu PVD 8215 dans la gamme de qualité ISO K10-K25 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 321:8215
Product Name (ISO)TPUN 160304:8215
Grade8215
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753423
Product FamilyPFPU

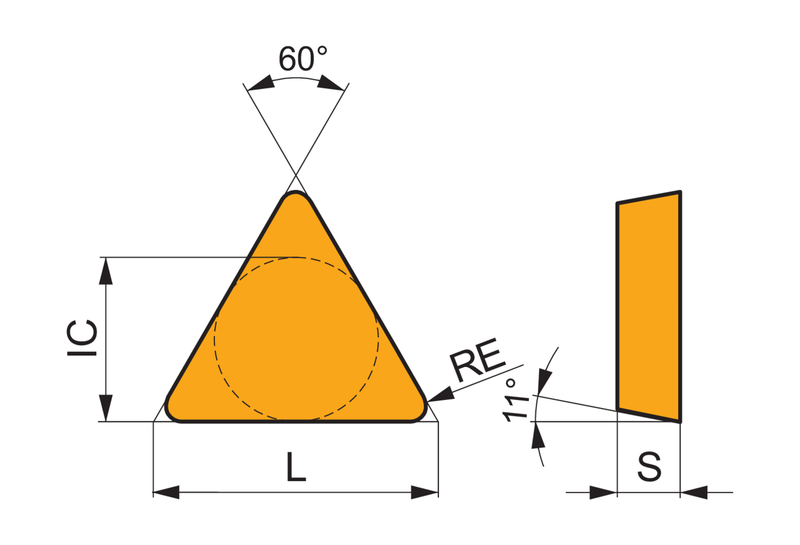

Insert Geometry
Insert DesignPTNU
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6753423
EAN3603602887894
File Type Download
TPU 321:8215 — Line Drawing PDF Download
