TPU 322:8215
TPU 322:8215

TPU 322:8215

UGC DOR6753424
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Vendu en lots de : 10

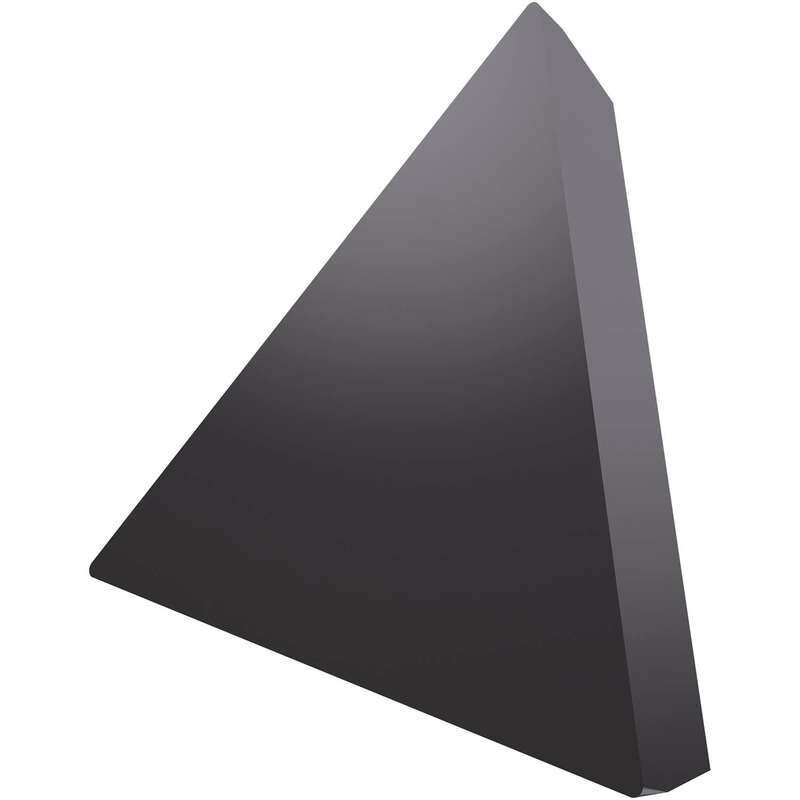

Plaquette de fraisage simple face TPUN 1603 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO U, en carbure WC-Co à grains fins revêtu PVD 8215, dans la gamme de nuances ISO K10-K25 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 322:8215
Product Name (ISO)TPUN 160308:8215
Grade8215
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753424
Product FamilyTPUN

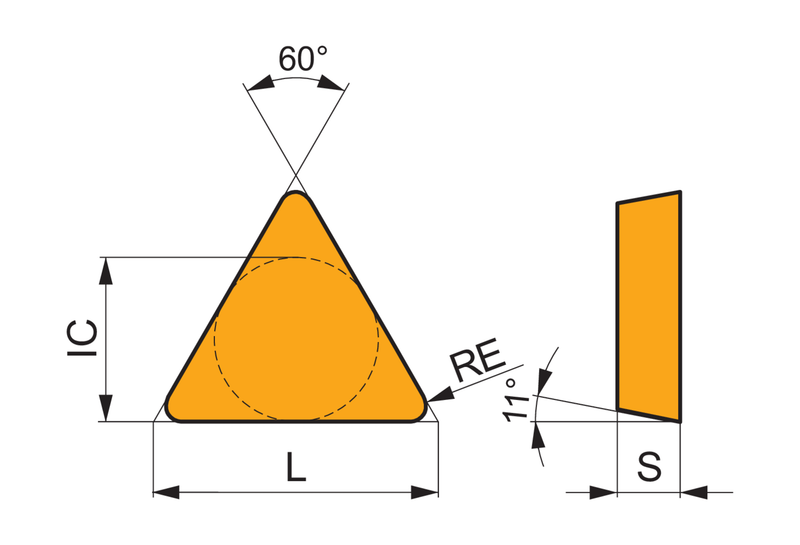

Insert Geometry
Insert DesignPCNU
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6753424
EAN3603602887900
File Type Download
TPU 322:8215 — Line Drawing PDF Download
