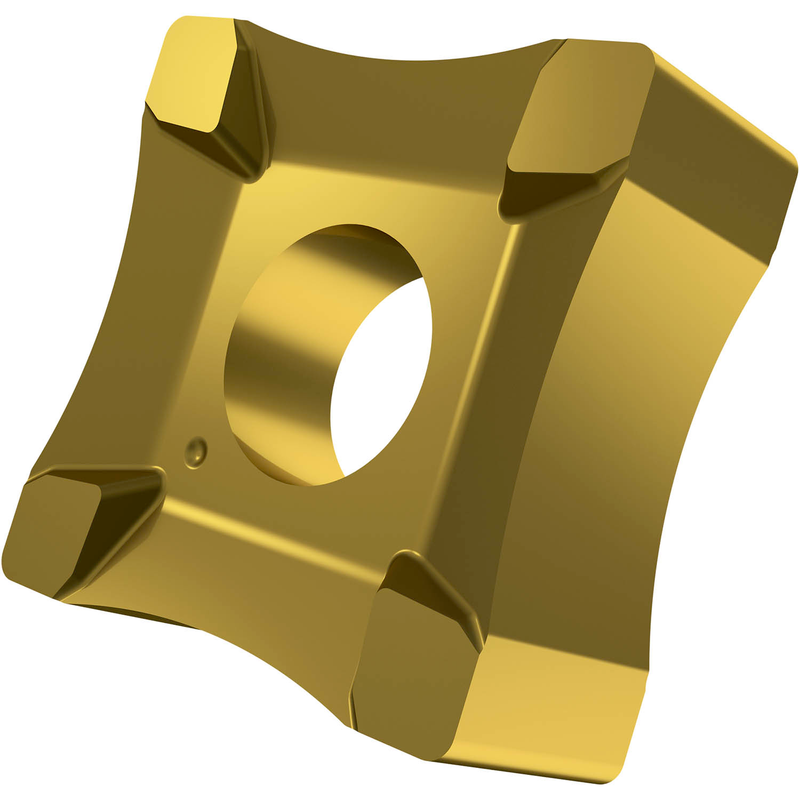

SNMX 19-R25:6640
SNMX 19-R25:6640

SNMX 19-R25:6640

UGC DOR6753558
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.57 CAD - $41.57 CAD
$41.57 CAD
$41.57 CAD - $41.57 CAD
$41.57 CAD

Vendu en lots de : 10

Plaquette d'écroutage double face, carrée, avec une arête de coupe principale de 19,05 mm, de 8,15 mm d'épaisseur et un rayon de travail de 25 mm pour des diamètres de tubes de 29 à 36 mm, en carbure WC-Co revêtu MT-CVD nuance 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 19-R25:6640
Grade6640
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number6753558
Product FamilySNMX 19-R
Insert Geometry
Insert DesignSNMX 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Tool Information
Reference Numbers
EDP Number6753558
EAN3603602889249
File Type Download

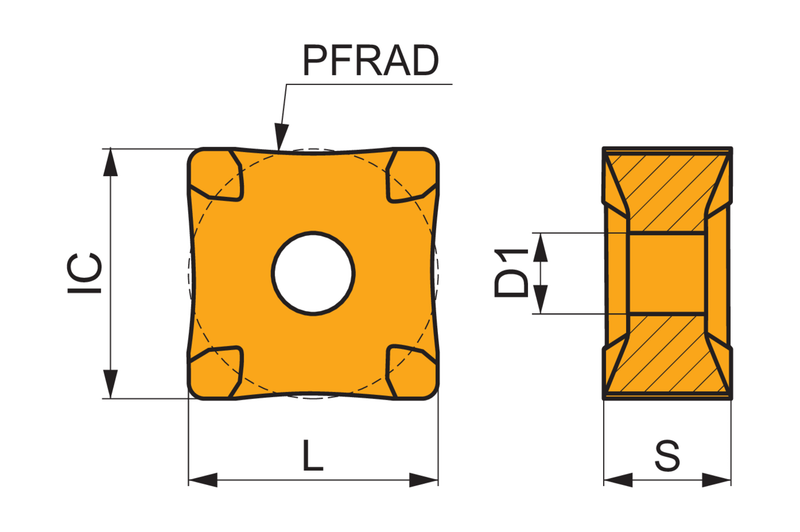

SNMX 19-R25:6640 — Line Drawing PDF Download
