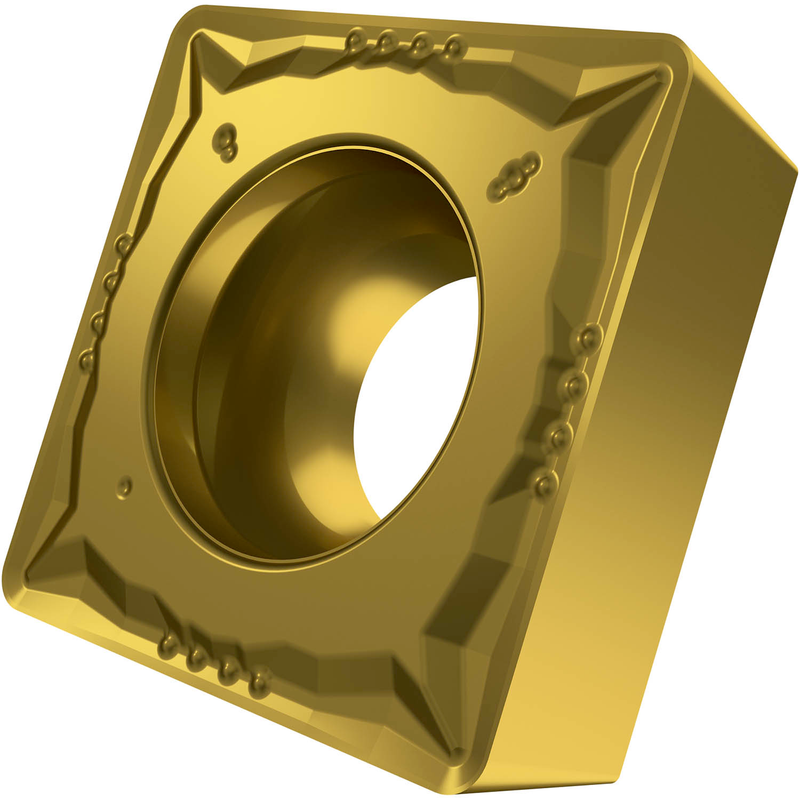

SCMT 432-FM:T8315
SCMT 432-FM:T8315

SCMT 432-FM:T8315

UGC DOR6753616
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.97 CAD - $18.97 CAD
$18.97 CAD
$18.97 CAD - $18.97 CAD
$18.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de pointe de 0,79 mm (1/32") et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T8315, un carbure WC-Co à grains fins revêtu PVD, dans la plage ISO M05-M20, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-FM:T8315
Product Name (ISO)SCMT 120408E-FM:T8315
GradeT8315
Chipbreaker (CBMD)FM
Product Number6753616
Product FamilySCMT
Insert Geometry
Insert DesignCMST
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6753616
EAN3603602889829
File Type Download
SCMT 432-FM:T8315 — Line Drawing PDF Download
