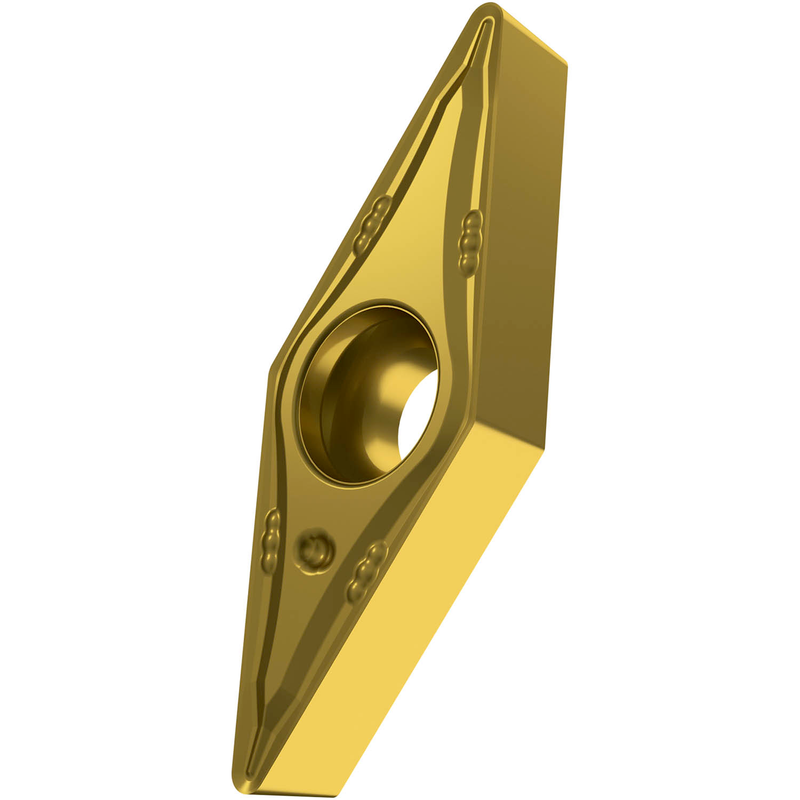

VBMT 331-FM:T8315
VBMT 331-FM:T8315

VBMT 331-FM:T8315

UGC DOR6753630
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.14 CAD - $22.14 CAD
$22.14 CAD
$22.14 CAD - $22.14 CAD
$22.14 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 3/8", épaisseur 3/16", rayon de bec 1/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T8315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M05-M20, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 331-FM:T8315
Product Name (ISO)VBMT 160404E-FM:T8315
GradeT8315
Chipbreaker (CBMD)FM
Product Number6753630
Product FamilyVBMT
Insert Geometry
Insert DesignCVMP
Insert Shape Code (SC)V - angle interne de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6753630
EAN3603602889966
File Type Download
VBMT 331-FM:T8315 — 2D Model DXF Download
VBMT 331-FM:T8315 — Line Drawing PDF Download
