HNGX 0604ANSN-R:M9325
HNGX 0604ANSN-R:M9325

HNGX 0604ANSN-R:M9325

UGC DOR6753658
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

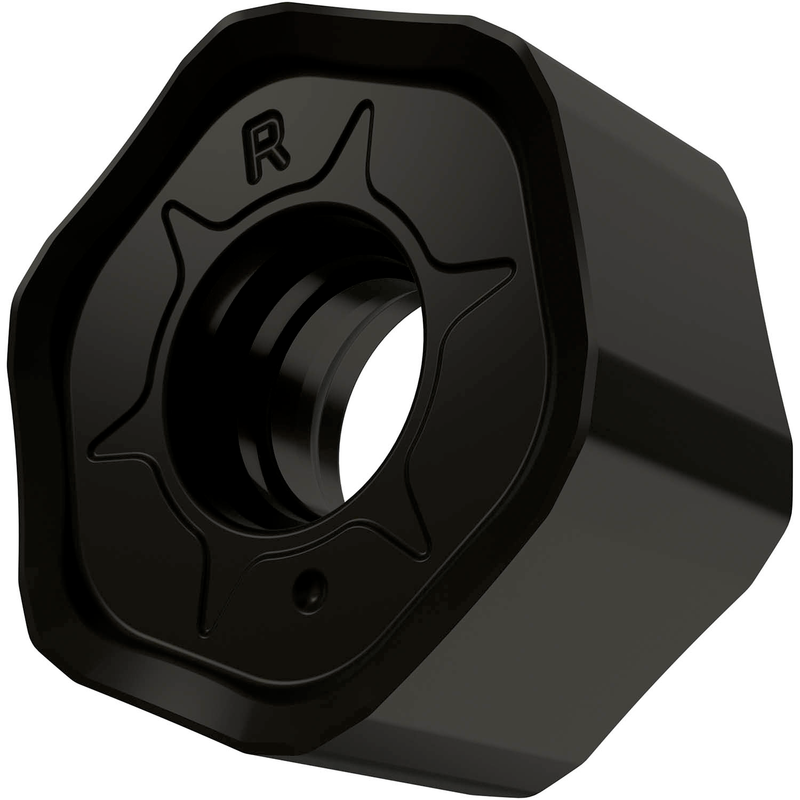

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3 mm, avec rayon de coin de ", précision de positionnement selon la classe de tolérance ISO G et géométrie R avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu M9325 MT-CVD pour l'usinage de l'acier avec les fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-R:M9325
GradeM9325
Chipbreaker (CBMD)R
Product Number6753658
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6753658
EAN3603602890245
File Type Download
HNGX 0604ANSN-R:M9325 — Line Drawing PDF Download
