HNGX 0906ANSN-M:M5315
HNGX 0906ANSN-M:M5315

HNGX 0906ANSN-M:M5315

UGC DOR6753667
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

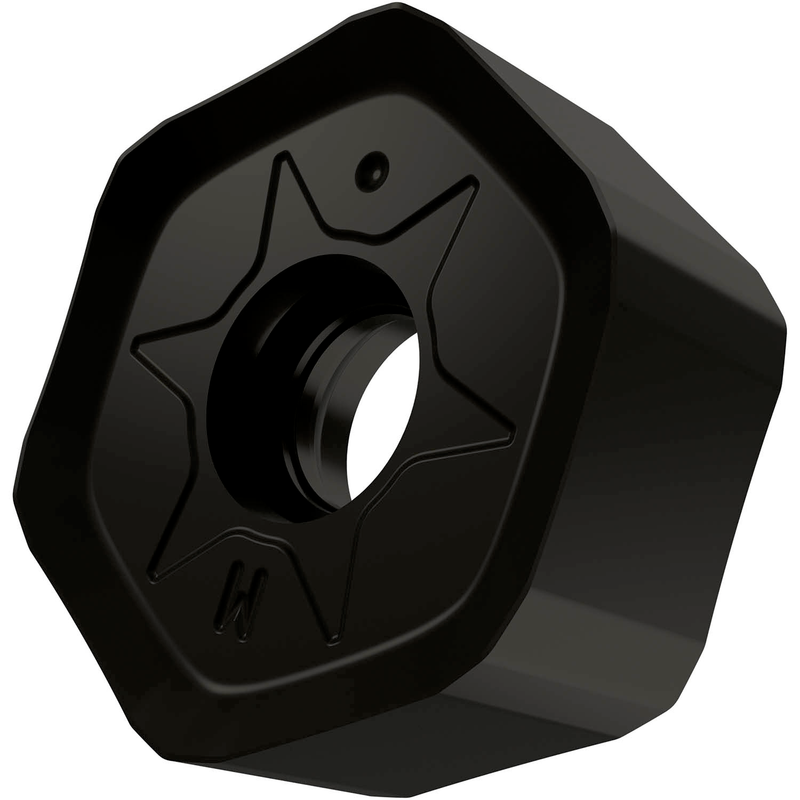

Plaquette de fraisage double face HNGX 0906, hexagonale pour une profondeur de coupe maximale de 0,1969", avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M5315 MT-CVD dans la gamme de classes ISO K05-K25 pour l'usinage de la fonte avec les fraises à surfacer SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-M:M5315
GradeM5315
Chipbreaker (CBMD)M
Product Number6753667
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6753667
EAN3603602890337
File Type Download
HNGX 0906ANSN-M:M5315 — Line Drawing PDF Download
