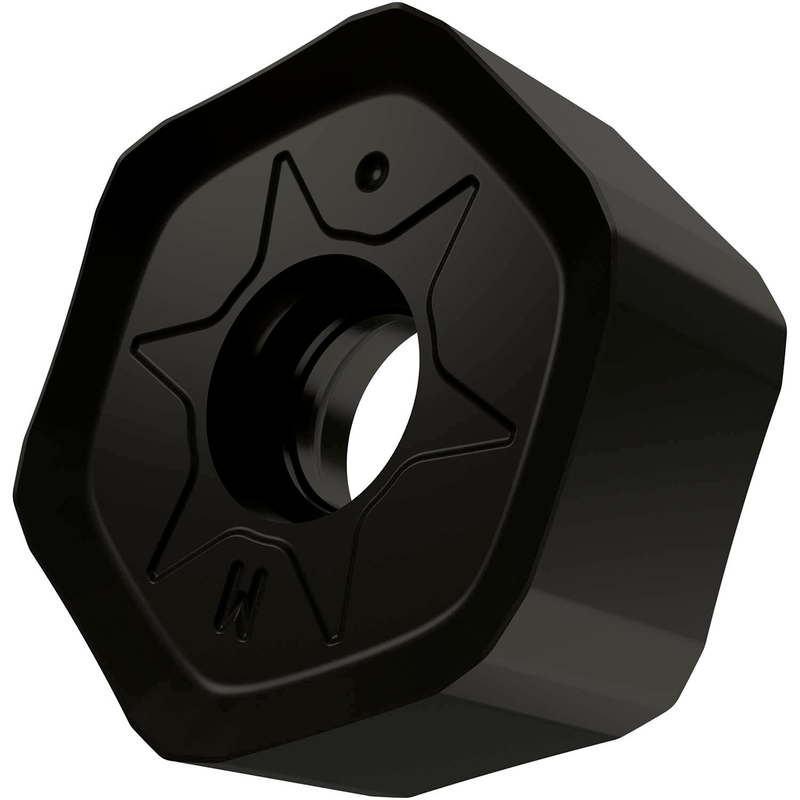

HNGX 0906ANSN-M:M9315
HNGX 0906ANSN-M:M9315

HNGX 0906ANSN-M:M9315

UGC DOR6753668
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNGX 0906, hexagonale pour une profondeur de coupe maximale de 5 mm, avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-G et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu MT-CVD M9315 dans la gamme de nuances ISO P05-P25 pour l'usinage de l'acier avec les fraises à surfacer SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-M:M9315
GradeM9315
Chipbreaker (CBMD)M
Product Number6753668
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6753668
EAN3603602890344
File Type Download
HNGX 0906ANSN-M:M9315 — Line Drawing PDF Download
