HNGX 0604ANSN-M:M9315
HNGX 0604ANSN-M:M9315

HNGX 0604ANSN-M:M9315

UGC DOR6753674
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

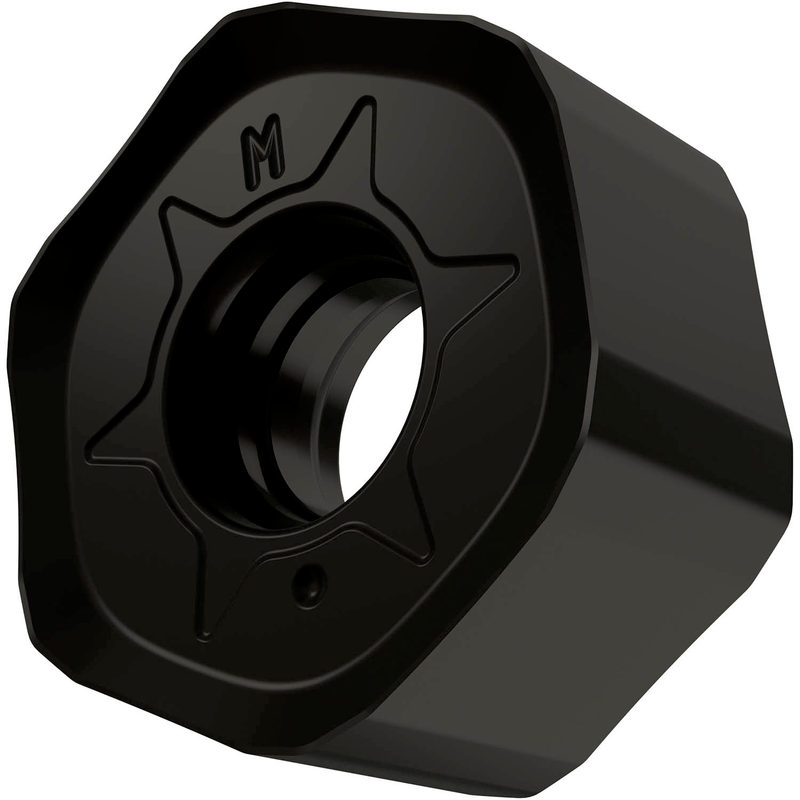

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3 mm (0,1181"), avec rayon d'angle de 0,4 mm (0,016"), une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co revêtu M9315 MT-CVD dans la plage de nuances ISO P05-P25 pour l'usinage de l'acier avec des fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-M:M9315
GradeM9315
Chipbreaker (CBMD)M
Product Number6753674
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6753674
EAN3603602890405
File Type Download
HNGX 0604ANSN-M:M9315 — Line Drawing PDF Download
