HNGX 0604ANSN-M:8215
HNGX 0604ANSN-M:8215

HNGX 0604ANSN-M:8215

UGC DOR6753676
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.30 CAD - $27.30 CAD
$27.30 CAD
$27.30 CAD - $27.30 CAD
$27.30 CAD

Vendu en lots de : 10

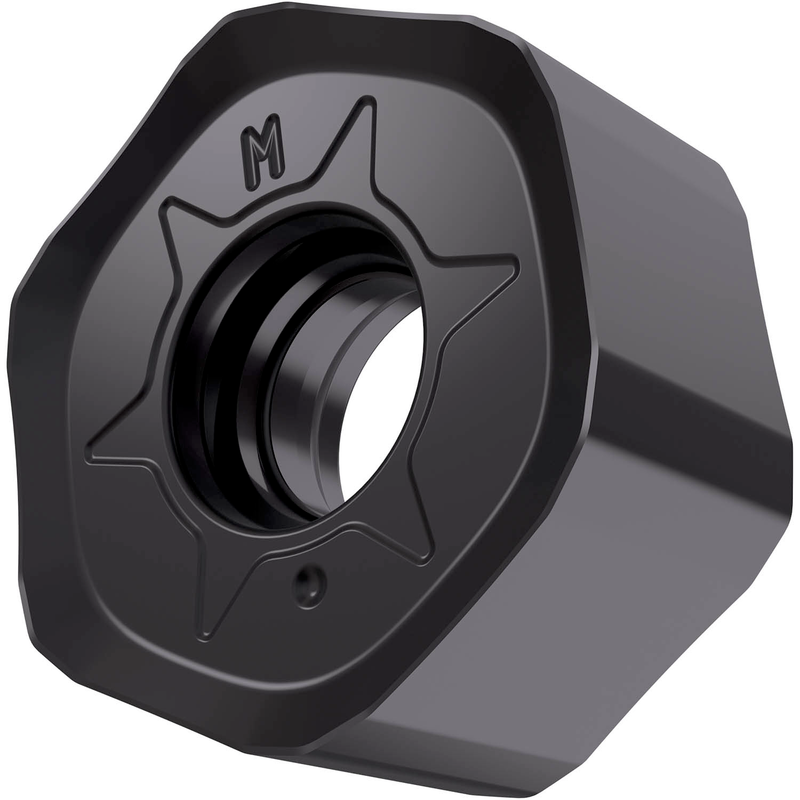

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3 mm (0,1181"), avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co micrograin revêtu PVD 8215 dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier et de la fonte avec des fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-M:8215
Grade8215
Chipbreaker (CBMD)M
Product Number6753676
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6753676
EAN3603602890429
File Type Download
HNGX 0604ANSN-M:8215 — Line Drawing PDF Download
