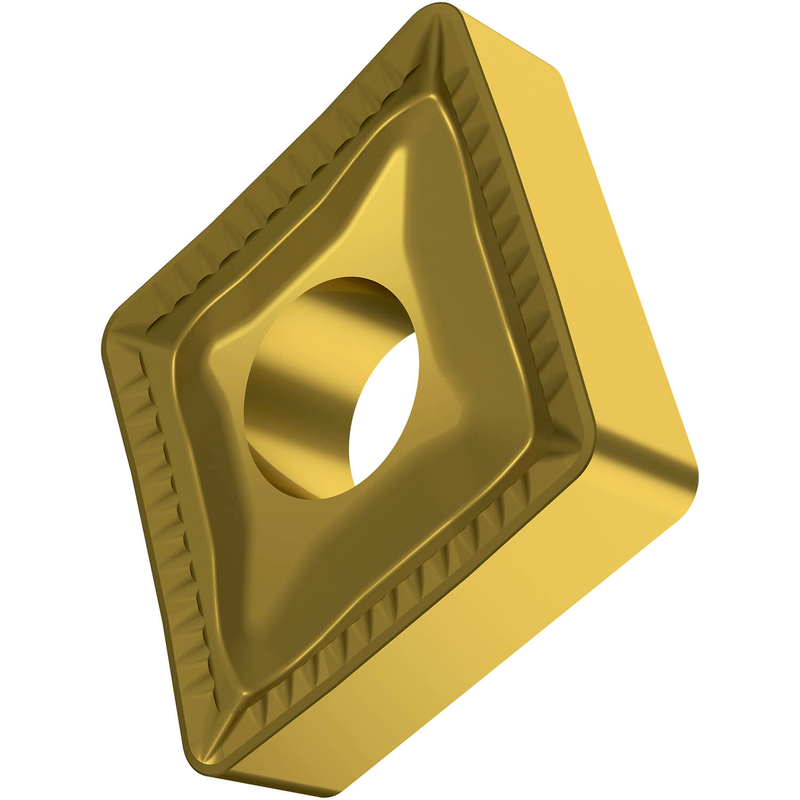

CNMM 644-HR:T8345
CNMM 644-HR:T8345

CNMM 644-HR:T8345

UGC DOR6753678
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", une épaisseur de 1/4", un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux HR, en nuance T8345, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P30 - P50, pour l'usinage lourd à extra-lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 644-HR:T8345
Product Name (ISO)CNMM 190616E-HR:T8345
GradeT8345
Chipbreaker (CBMD)RH
Product Number6753678
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - rhombique angle inclus de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.524"
Depth of Cut Max — mm (APMX)13.3 mm
Tool Information
Reference Numbers
EDP Number6753678
EAN3603602890443
File Type Download
CNMM 644-HR:T8345 — Line Drawing PDF Download
