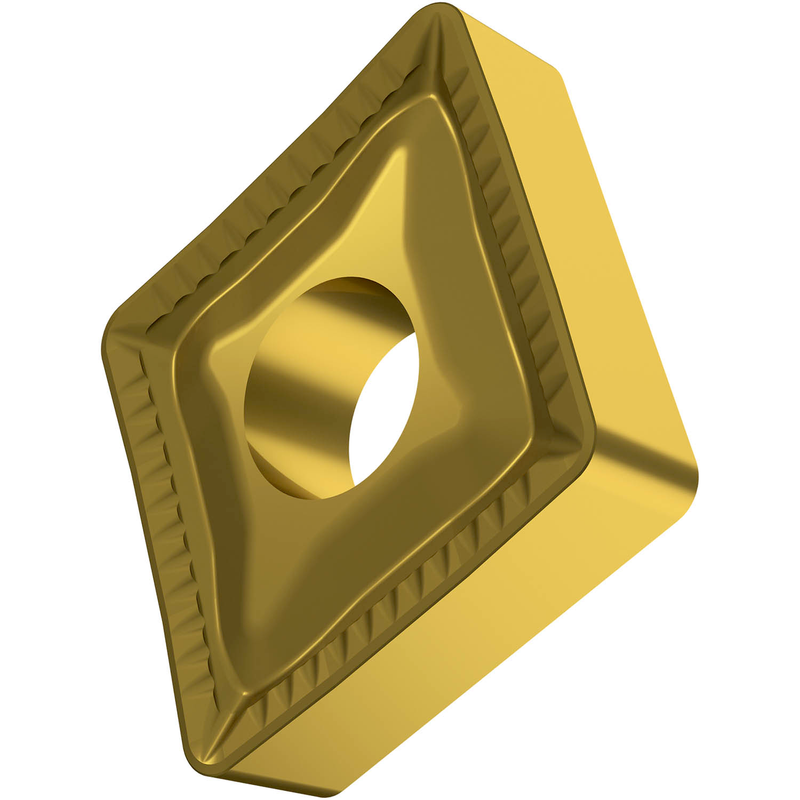

CNMM 866-RH:T8345
CNMM 866-RH:T8345

CNMM 866-RH:T8345

UGC DOR6753681
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde 80° avec cercle inscrit de 1" de diamètre, épaisseur 3/8", rayon de bec 3/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux HR, en nuance T8345, un carbure WC-Co à grains fins revêtu PVD, dans la plage ISO P30 - P50, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-HR:T8345
Product Name (ISO)CNMM 250924F-RH:T8345
GradeT8345
Chipbreaker (CBMD)RH
Product Number6753681
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhomboïde de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number6753681
EAN3603602890474
File Type Download
CNMM 866-RH:T8345 — Line Drawing PDF Download
