SNMX 251224S-SR:T8345
SNMX 251224S-SR:T8345

SNMX 251224S-SR:T8345

UGC DOR6753687
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.57 CAD - $73.57 CAD
$73.57 CAD
$73.57 CAD - $73.57 CAD
$73.57 CAD

Vendu en lots de : 10

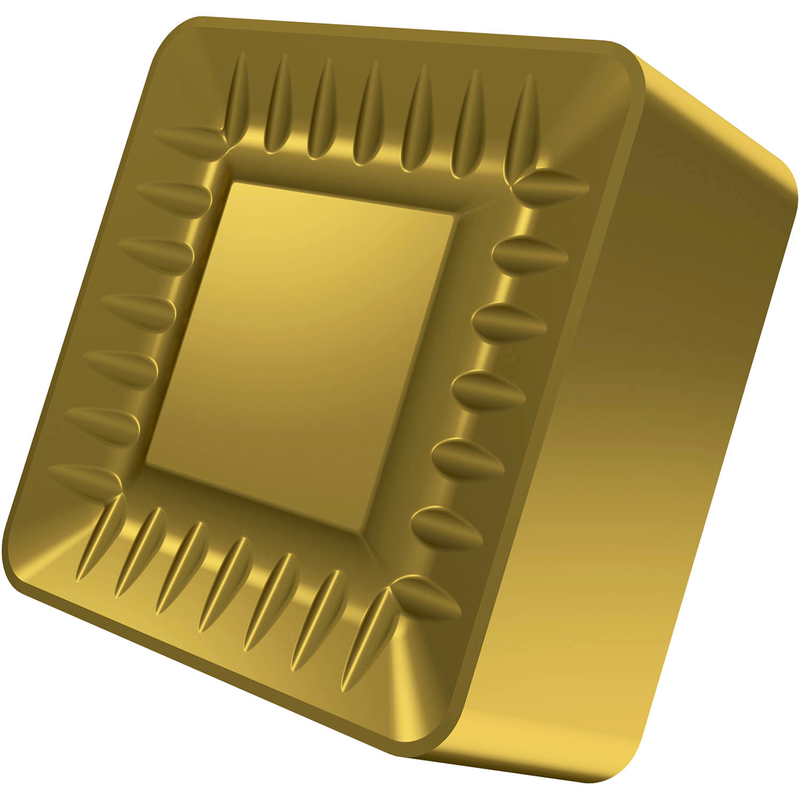

Plaquette négative à géométrie spéciale, carrée avec un diamètre de cercle inscrit de 25,4 mm, épaisseur de 12 mm, rayon de bec de 2,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SR avec arêtes vives arrondies et facette, en nuance T8345, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M20-M40, pour l'usinage lourd à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 251224S-SR:T8345
GradeT8345
Chipbreaker (CBMD)SR
Product Number6753687
Product FamilySNMX

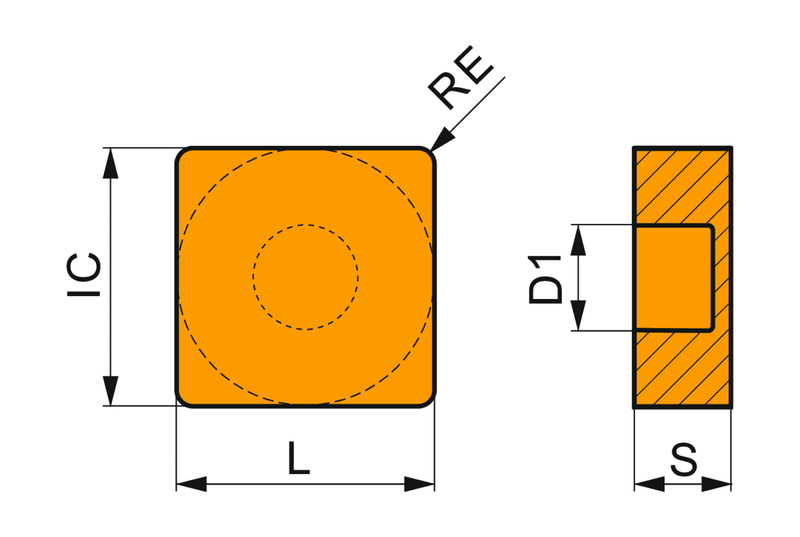

Insert Geometry
Insert DesignSNMX
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6753687
EAN3603602890535
File Type Download
SNMX 251224S-SR:T8345 — Line Drawing PDF Download
