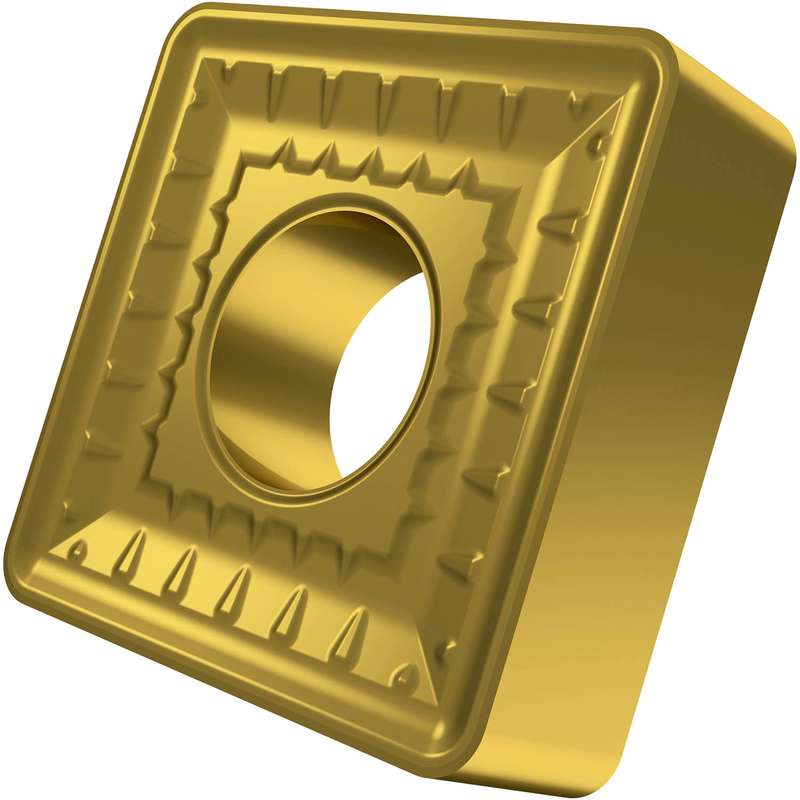

SNMM 644-923:T8345
SNMM 644-923:T8345

SNMM 644-923:T8345

UGC DOR6753692
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.26 CAD - $29.26 CAD
$29.26 CAD
$29.26 CAD - $29.26 CAD
$29.26 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, carrée avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux 923, en nuance T8345, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P30 - P50, pour l'usinage lourd à extra lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-923:T8345
Product Name (ISO)SNMM 190616S-923:T8345
GradeT8345
Chipbreaker (CBMD)923
Product Number6753692
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number6753692
EAN3603602890580
File Type Download
SNMM 644-923:T8345 — Line Drawing PDF Download
