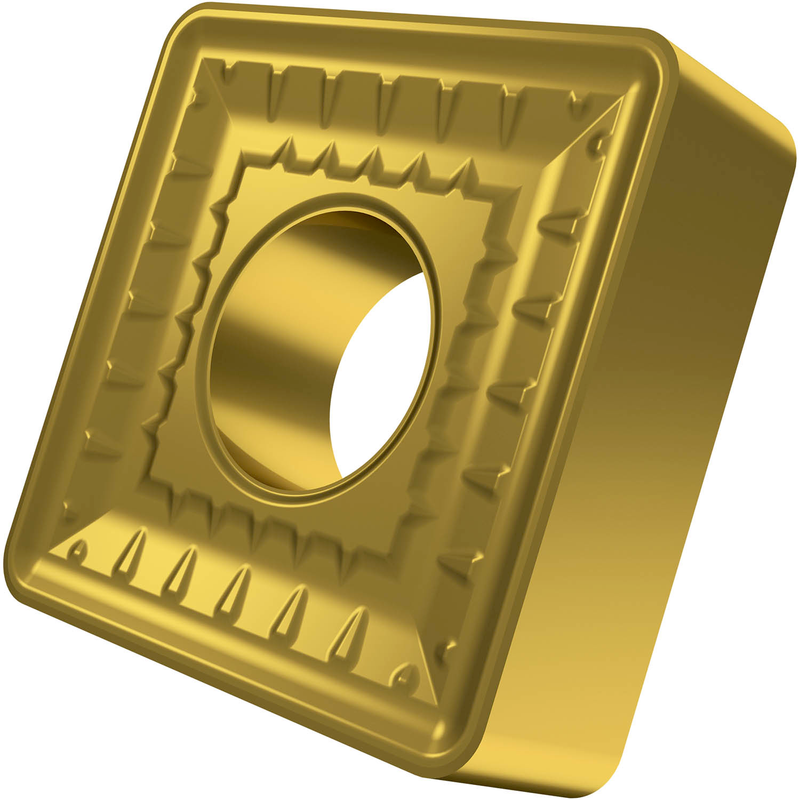

SNMM 866-923:T8345
SNMM 866-923:T8345

SNMM 866-923:T8345

UGC DOR6753694
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.00 CAD - $60.00 CAD
$60.00 CAD
$60.00 CAD - $60.00 CAD
$60.00 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec cercle inscrit de 1" de diamètre, 3/8" d'épaisseur, rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux 923, en nuance T8345, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P30 - P50, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-923:T8345
Product Name (ISO)SNMM 250924S-923:T8345
GradeT8345
Chipbreaker (CBMD)923
Product Number6753694
Product FamilySMNM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6753694
EAN3603602890603
File Type Download
SNMM 866-923:T8345 — Line Drawing PDF Download
