GNLX 120508ER-M:M9315
GNLX 120508ER-M:M9315

GNLX 120508ER-M:M9315

UGC DOR6753695
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.61 CAD - $29.61 CAD
$29.61 CAD
$29.61 CAD - $29.61 CAD
$29.61 CAD

Vendu en lots de : 10

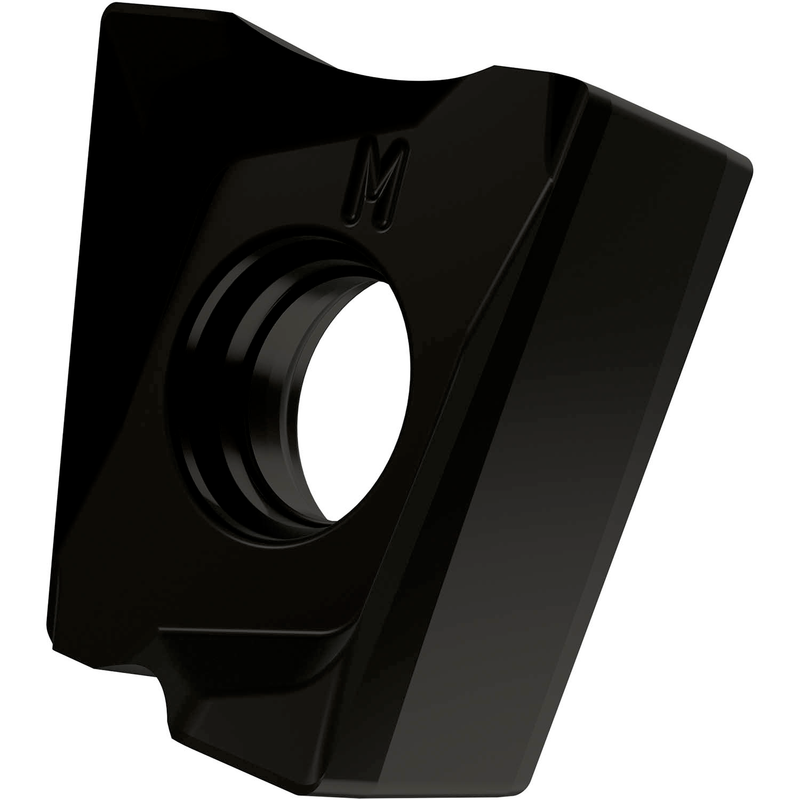

Plaquette de fraisage double face LNGX 1205, rectangulaire, pour une profondeur de coupe maximale de 9 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe arrondies, carbure WC-Co revêtu M9315 MT-CVD dans la gamme ISO P05-P25 pour l'usinage de l'acier avec les fraises à épaulement SLN12

For more information about this product, click here

Identification
Ordering Code (ANSI)LNGX 120508ER-M:M9315
Product Name (ISO)GNLX 120508ER-M:M9315
GradeM9315
Chipbreaker (CBMD)M
Product Number6753695
Product FamilyGNLX 12
Insert Geometry
Insert DesignGNLX 12
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.235"
Insert Thickness — mm (S)5.96 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6753695
EAN3603602890610
File Type Download
GNLX 120508ER-M:M9315 — Line Drawing PDF Download
