SNMX 15-R35:6640

SNMX 15-R35:6640

UGC DOR6753705
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.83 CAD - $24.83 CAD
$24.83 CAD
$24.83 CAD - $24.83 CAD
$24.83 CAD

Vendu en lots de : 10

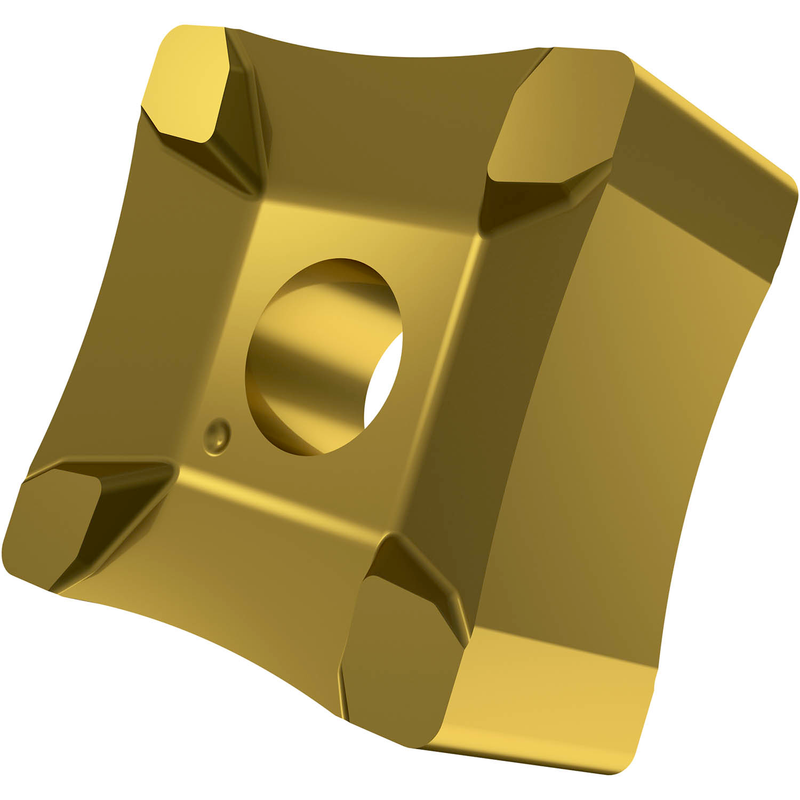

Plaquette d'ébavurage double face, carrée, avec une arête de coupe principale de 15,875 mm, une épaisseur de 8,15 mm et un rayon de travail de 35 mm pour des diamètres de tubes de 40 à 51 mm, en carbure WC-Co revêtu MT-CVD 6640 dans les plages de grades ISO P20-P40 et M20-M35 pour l'ébavurage extérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 15-R35:6640
Grade6640
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number6753705
Product FamilySNMX 15-R
Insert Geometry
Insert DesignSNMX 15-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Tool Information
Reference Numbers
EDP Number6753705
EAN3603602890719
