SNMX 15-R40:6640

SNMX 15-R40:6640

UGC DOR6753706
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.83 CAD - $24.83 CAD
$24.83 CAD
$24.83 CAD - $24.83 CAD
$24.83 CAD

Vendu en lots de : 10

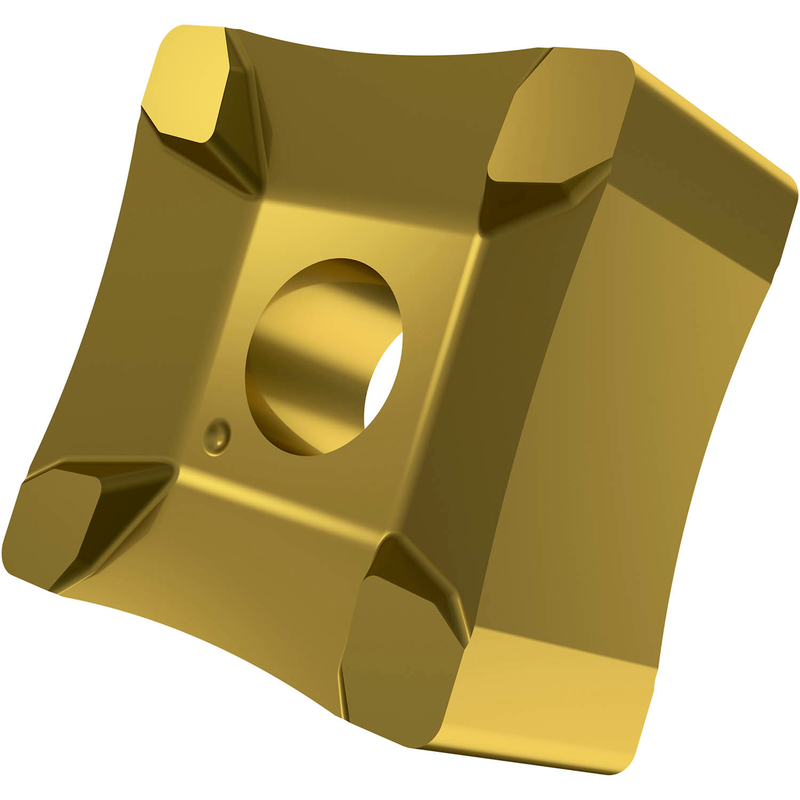

Plaquette d'écroutage double-face, carrée avec une arête de coupe principale de 15,875mm, 8,15mm d'épaisseur et un rayon de travail de 40mm pour des diamètres de tubes de 46 à 58mm, en carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 15-R40:6640
Grade6640
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number6753706
Product FamilySNMX 15-R
Insert Geometry
Insert DesignSNMX 15-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.321"
Insert Thickness — mm (S)8.15 mm
Tool Information
Reference Numbers
EDP Number6753706
EAN3603602890726
