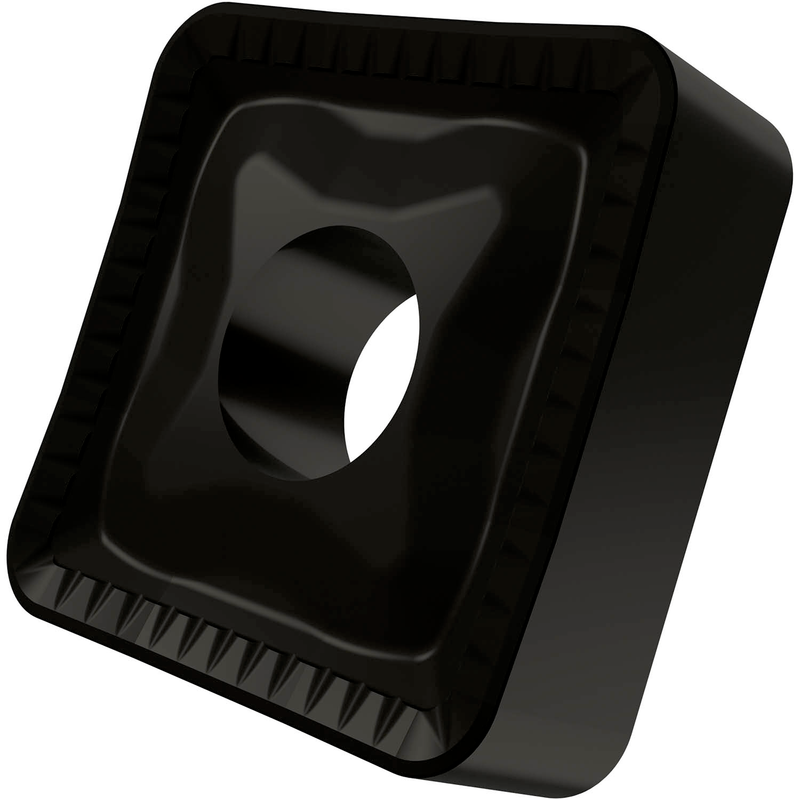

SNMM 856-HR:T9325
SNMM 856-HR:T9325

SNMM 856-HR:T9325

UGC DOR6753841
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.00 CAD - $54.00 CAD
$54.00 CAD
$54.00 CAD - $54.00 CAD
$54.00 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", épaisseur de 5/16", rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux HR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 856-HR:T9325
Product Name (ISO)SNMM 250724E-HR:T9325
GradeT9325
Chipbreaker (CBMD)RH
Product Number6753841
Product FamilySNMM
Insert Geometry
Insert DesignMSNM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number6753841
EAN3603602892072
File Type Download
SNMM 856-HR:T9325 — Line Drawing PDF Download
