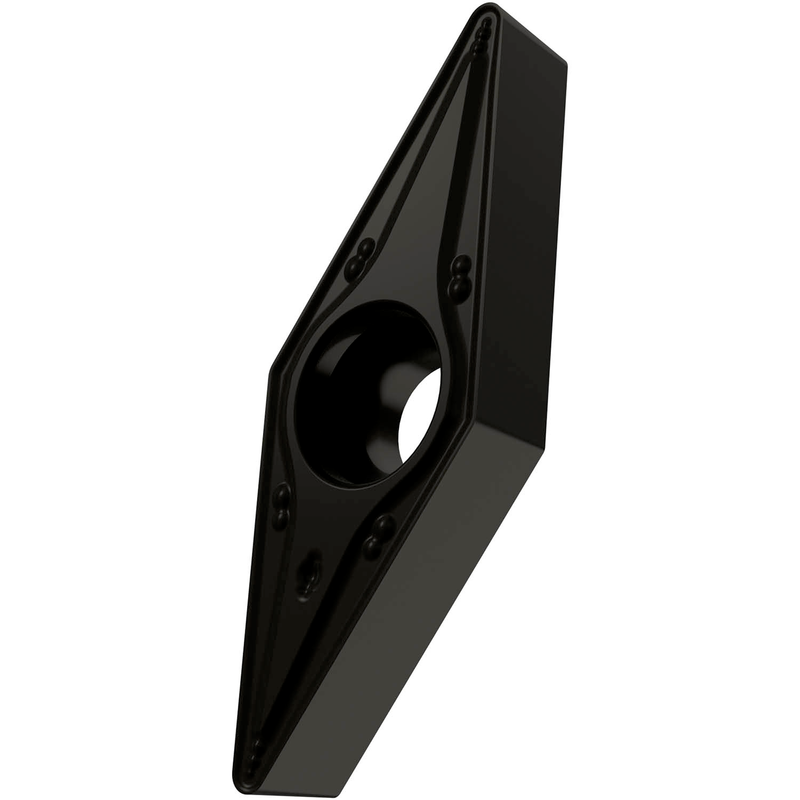

VBMT 332-RM:T9325
VBMT 332-RM:T9325

VBMT 332-RM:T9325

UGC DOR6753856
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.14 CAD - $22.14 CAD
$22.14 CAD
$22.14 CAD - $22.14 CAD
$22.14 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 5°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 332-RM:T9325
Product Name (ISO)VBMT 160408E-RM:T9325
GradeT9325
Chipbreaker (CBMD)RM
Product Number6753856
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - à angle inclus de 35° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Reference Numbers
EDP Number6753856
EAN3603602892225
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
VBMT 332-RM:T9325 — Line Drawing PDF Download
