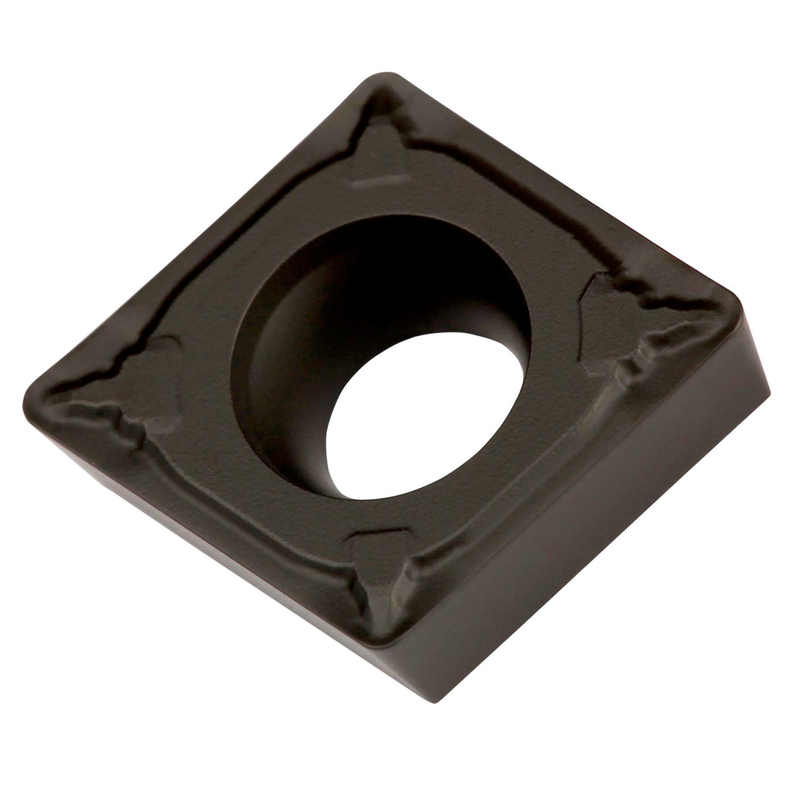

CCMT 431-UR:T9325
CCMT 431-UR:T9325

CCMT 431-UR:T9325

UGC DOR6753871
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.54 CAD - $16.54 CAD
$16.54 CAD
$16.54 CAD - $16.54 CAD
$16.54 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 80° avec dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 431-UR:T9325
Product Name (ISO)CCMT 120404E-UR:T9325
GradeT9325
Chipbreaker (CBMD)VOUS
Product Number6753871
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6753871
EAN3603602892379
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
CCMT 431-UR:T9325 — Line Drawing PDF Download
