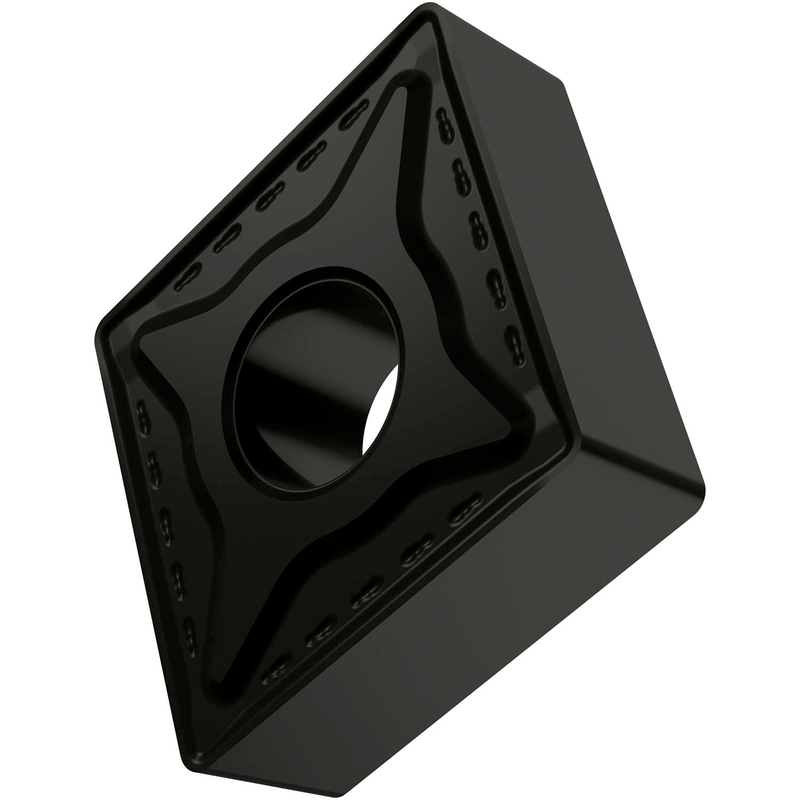

CNMG 866-RM:T9325
CNMG 866-RM:T9325

CNMG 866-RM:T9325

UGC DOR6753911
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 866-RM:T9325
Product Name (ISO)CNMG 250924E-RM:T9325
GradeT9325
Chipbreaker (CBMD)RM
Product Number6753911
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - 80° d'angle rentrant rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6753911
EAN3603602892775
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 866-RM:T9325 — Line Drawing PDF Download
