CNMM 433-NR2:T9325
CNMM 433-NR2:T9325

CNMM 433-NR2:T9325

UGC DOR6753916
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

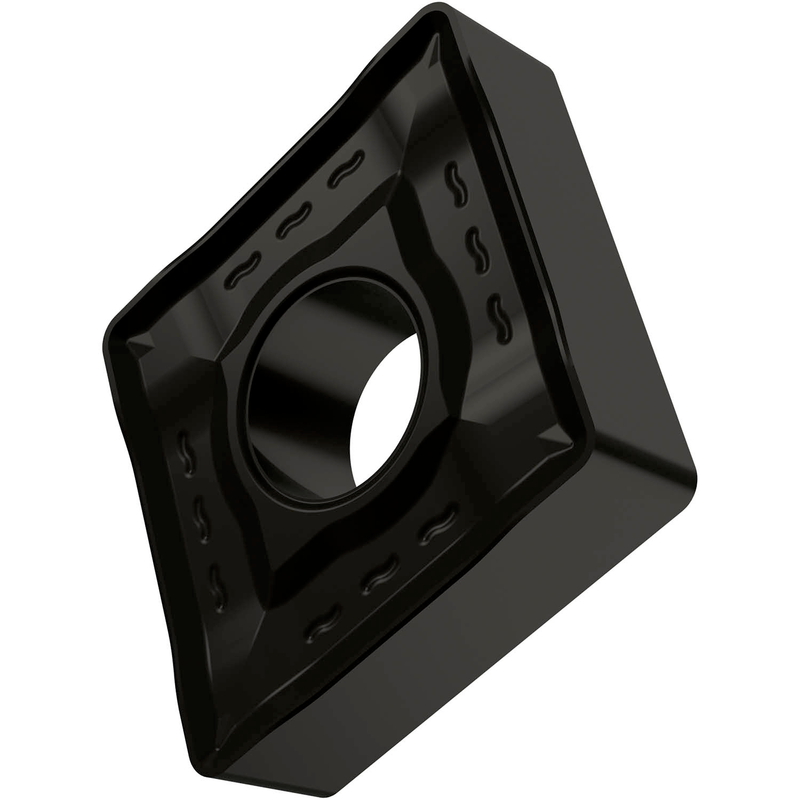

Plaquette de tournage négative double face, rhomboïde 80° avec diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15 - P35 et M10 - M30, pour l'usinage moyen à très lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 433-NR2:T9325
Product Name (ISO)CNMM 120412E-NR2:T9325
GradeT9325
Chipbreaker (CBMD)NR2
Product Number6753916
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle entre faces de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.295"
Depth of Cut Max — mm (APMX)7.5 mm
Tool Information
Reference Numbers
EDP Number6753916
EAN3603602892829
File Type Download
CNMM 433-NR2:T9325 — Line Drawing PDF Download
