CNMM 643-OR:T9325
CNMM 643-OR:T9325

CNMM 643-OR:T9325

UGC DOR6753928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

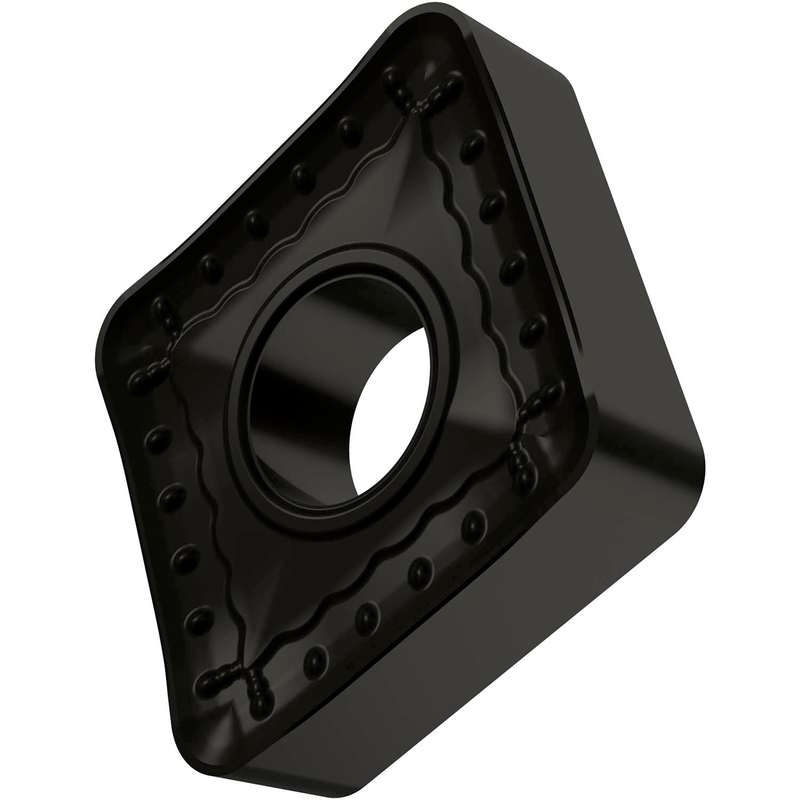

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO- M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 643-OR:T9325
Product Name (ISO)CNMM 190612E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU
Product Number6753928
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle fermé rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6753928
EAN3603602892942
File Type Download
CNMM 643-OR:T9325 — Line Drawing PDF Download
