DNMG 333-M:T9325
DNMG 333-M:T9325

DNMG 333-M:T9325

UGC DOR6753950
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

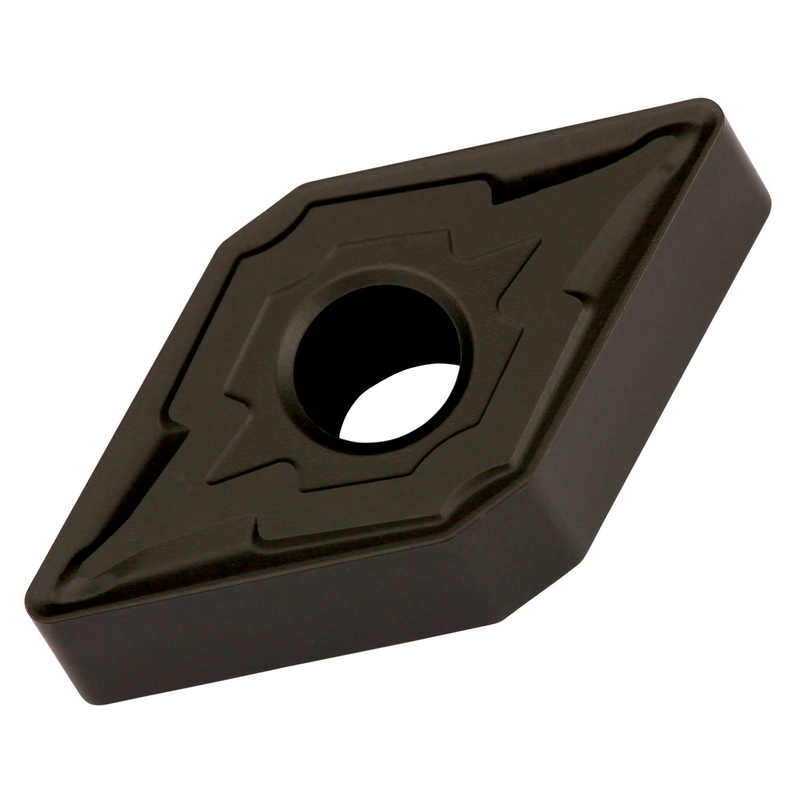

Plaquette négative double face, rhomboïde à 55° avec cercle inscrit de 3/8" de diamètre, 3/16" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage du dégrossissage à la finition des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 333-M:T9325
Product Name (ISO)DNMG 110412E-M:T9325
GradeT9325
Chipbreaker (CBMD)M
Product Number6753950
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhomboïde de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6753950
EAN3603602893161
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
DNMG 333-M:T9325 — Line Drawing PDF Download
