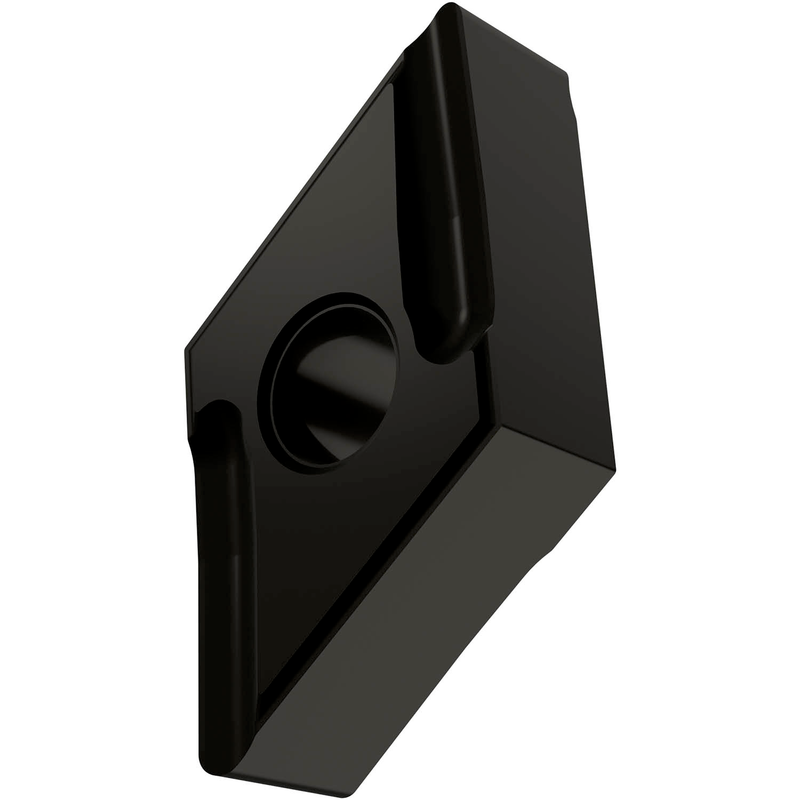

DNMG 432L-SI:T9325
DNMG 432L-SI:T9325

DNMG 432L-SI:T9325

UGC DOR6753955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SI, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage moyen à lourd des aciers et aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 432L-SI:T9325
Product Name (ISO)DNMG 150408EL-SI:T9325
GradeT9325
Chipbreaker (CBMD)Oui
Product Number6753955
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'ouverture rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6753955
EAN3603602893215
File Type Download
DNMG 432L-SI:T9325 — Line Drawing PDF Download
