LNUX 40-1129003:T9325
LNUX 40-1129003:T9325

LNUX 40-1129003:T9325

UGC DOR6753981
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.57 CAD - $133.57 CAD
$133.57 CAD
$133.57 CAD - $133.57 CAD
$133.57 CAD

Vendu en lots de : 5

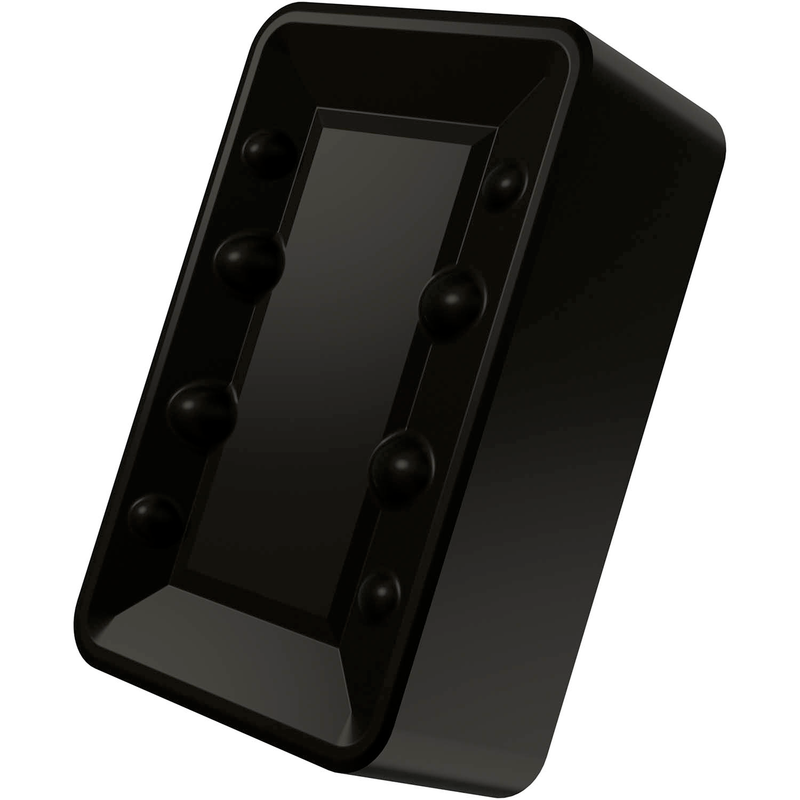

Plaquette de tournage négative de conception spéciale, rectangulaire avec une longueur d'arête principale de 40mm, un rayon de bec de 3,2mm et une précision d'indexage selon la classe de tolérance ISO-U, brise-copeaux 1129003, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 40-1129003:T9325
GradeT9325
Chipbreaker (CBMD)40 - 03
Product Number6753981
Product FamilyLNUX 40, LN.X 50
Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangulaire
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm
Tool Information
Reference Numbers
EDP Number6753981
EAN3603602893475
File Type Download
LNUX 40-1129003:T9325 — Line Drawing PDF Download
