LNUX 50-1275000:T9325
LNUX 50-1275000:T9325

LNUX 50-1275000:T9325

UGC DOR6753982
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$164.29 CAD - $164.29 CAD
$164.29 CAD
$164.29 CAD - $164.29 CAD
$164.29 CAD

Vendu en lots de : 2

Plaquette de tournage négative de conception spéciale, rectangulaire avec une longueur d'arête principale de 50,8 mm, un rayon de bec de 3,2 mm et une précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 1275000, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 50-1275000:T9325
GradeT9325
Chipbreaker (CBMD)Avec brise-copeaux - sans désignation
Product Number6753982
Product FamilyLNUX 40, LN.X 50

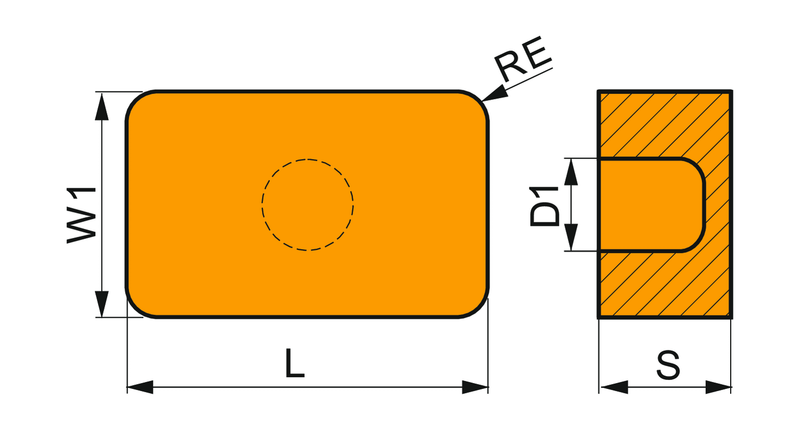

Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangulaire
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.417"
Depth of Cut Max — mm (APMX)36.0 mm
Tool Information
Reference Numbers
EDP Number6753982
EAN3603602893482
File Type Download
LNUX 50-1275000:T9325 — Line Drawing PDF Download
