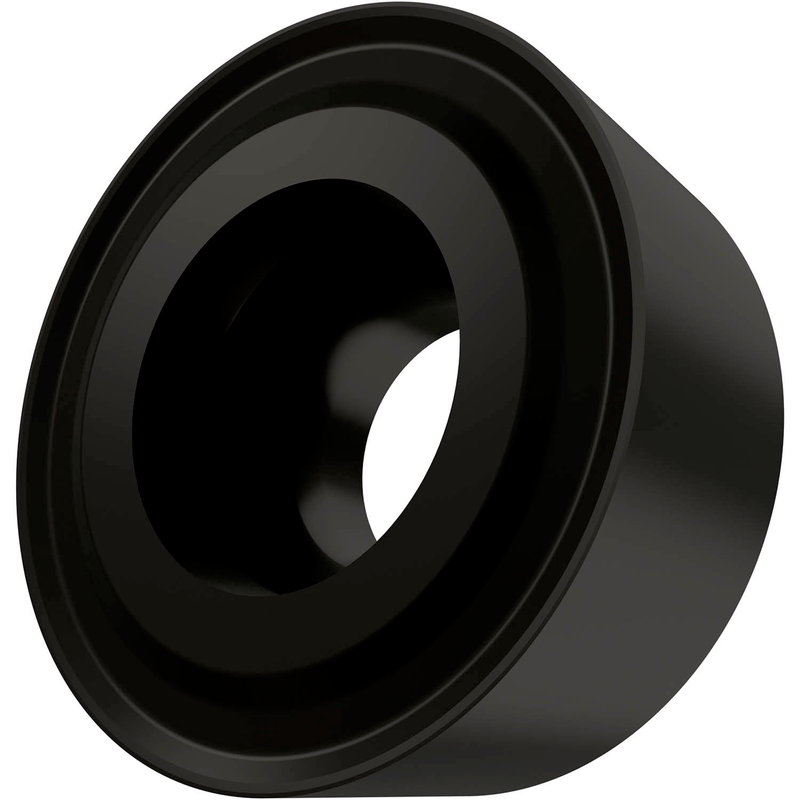

RCMT 0602MOE-FM:T9325
RCMT 0602MOE-FM:T9325

RCMT 0602MOE-FM:T9325

UGC DOR6753983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.93 CAD - $9.93 CAD
$9.93 CAD
$9.93 CAD - $9.93 CAD
$9.93 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, un diamètre de 6 mm, une épaisseur de 2,38 mm, une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM à arêtes vives arrondies, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0602MOE-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6753983
Product FamilyCMTR
Insert Geometry
Insert DesignCRÉDM
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Depth of Cut Max — in (APMX)0.094"
Depth of Cut Max — mm (APMX)2.4 mm
Tool Information
Reference Numbers
EDP Number6753983
EAN3603602893499
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
RCMT 0602MOE-FM:T9325 — Line Drawing PDF Download
