RCMT 2507MOS-372:T9325
RCMT 2507MOS-372:T9325

RCMT 2507MOS-372:T9325

UGC DOR6753988
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.50 CAD - $57.50 CAD
$57.50 CAD
$57.50 CAD - $57.50 CAD
$57.50 CAD

Vendu en lots de : 10

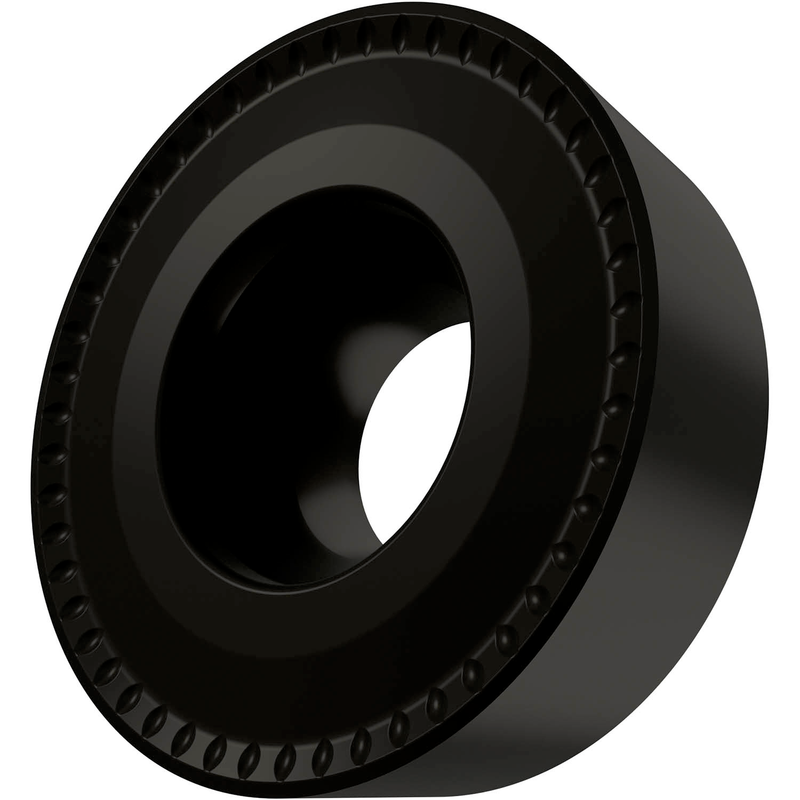

Plaquette de tournage positive simple face, ronde avec dégagement de 7°, diamètre de 25 mm, épaisseur de 7,94 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux 372 à arêtes de coupe arrondies avec facette, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 2507MOS-372:T9325
GradeT9325
Chipbreaker (CBMD)372
Product Number6753988
Product FamilyCRMT
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6753988
EAN3603602893543
File Type Download

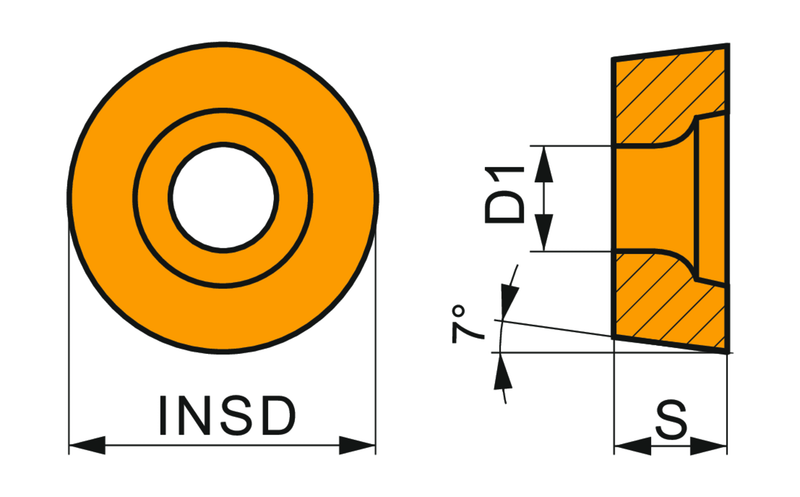

RCMT 2507MOS-372:T9325 — Line Drawing PDF Download
