RNMG 86-081:T9325
RNMG 86-081:T9325

RNMG 86-081:T9325

UGC DOR6753997
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.57 CAD - $38.57 CAD
$38.57 CAD
$38.57 CAD - $38.57 CAD
$38.57 CAD

Vendu en lots de : 10

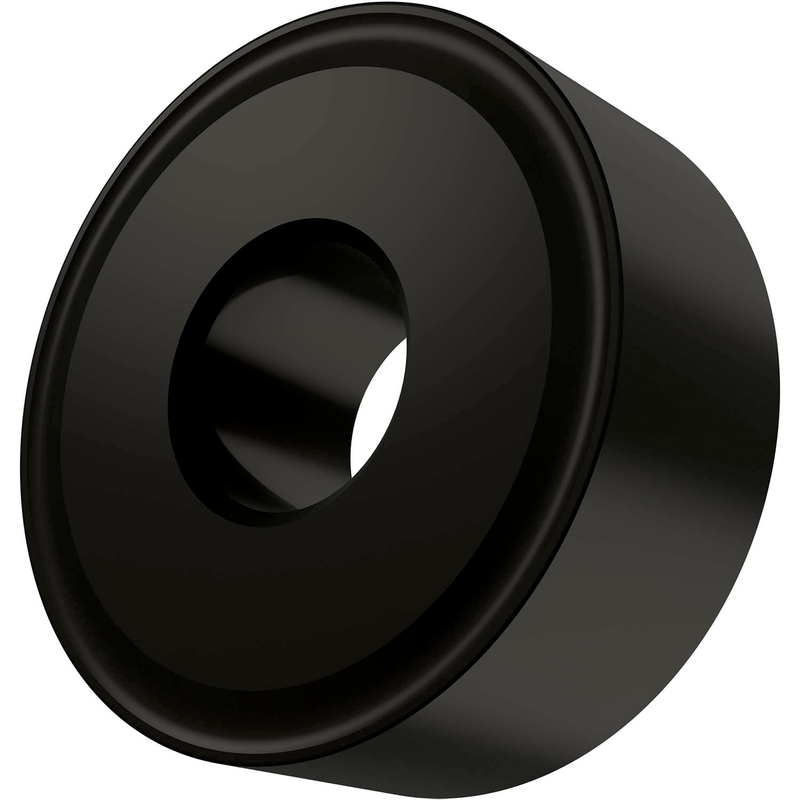

Plaquette de tournage négative double face, ronde de 1" de diamètre, 3/8" d'épaisseur, précision d'indexation selon la classe de tolérance ISO M, brise-copeaux 081, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage lourd à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)RNMG 86-081:T9325
Product Name (ISO)RNMG 250900E-081:T9325
GradeT9325
Chipbreaker (CBMD)81
Product Number6753997
Product FamilyRNMG
Insert Geometry
Insert DesignRNMG
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6753997
EAN3603602893635
File Type Download

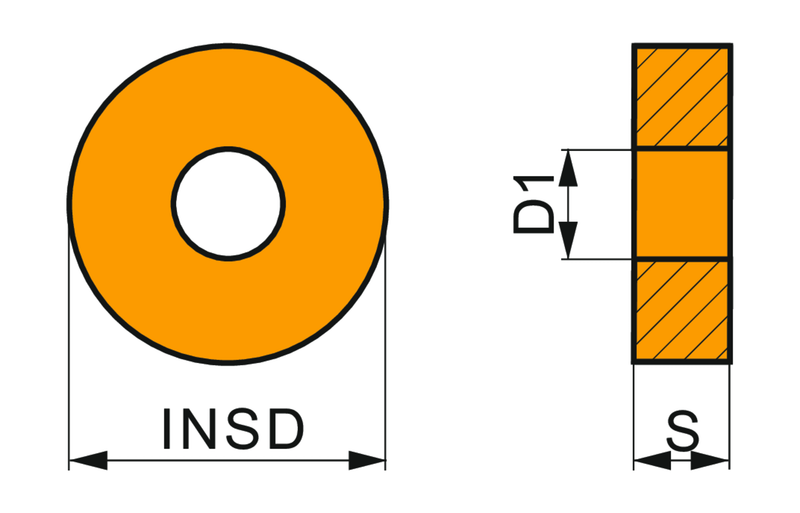

RNMG 86-081:T9325 — Line Drawing PDF Download
