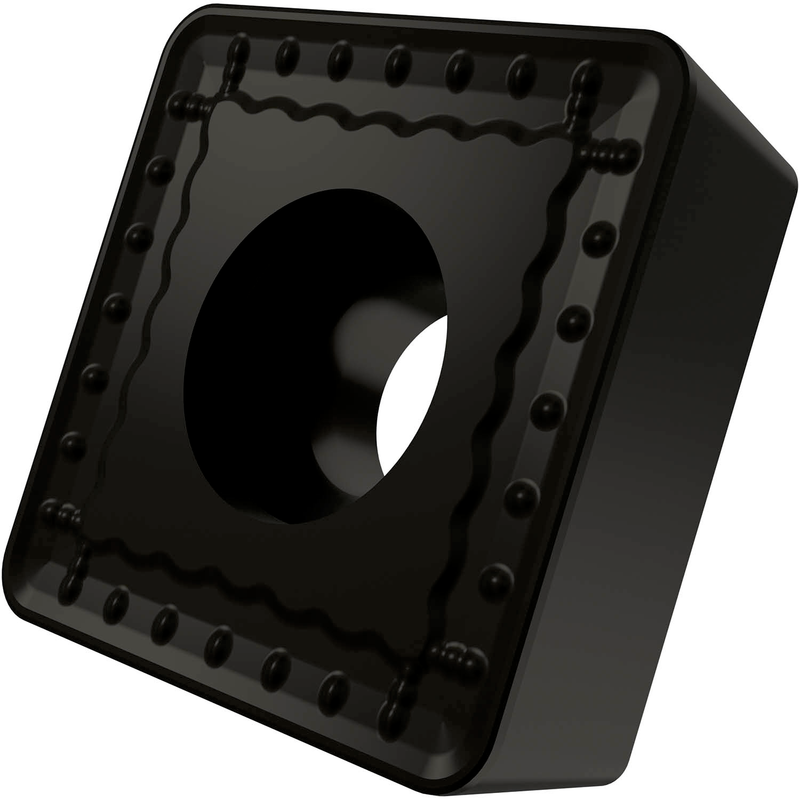

SCMT 866-OR:T9325
SCMT 866-OR:T9325

SCMT 866-OR:T9325

UGC DOR6754001
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.14 CAD - $72.14 CAD
$72.14 CAD
$72.14 CAD - $72.14 CAD
$72.14 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec un dépouille de 7°, diamètre du cercle inscrit de 1", 3/8" d'épaisseur, rayon de bec de 3/32" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage lourd à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 866-OR:T9325
Product Name (ISO)SCMT 250924E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU_
Product Number6754001
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754001
EAN3603602893673
File Type Download
SCMT 866-OR:T9325 — Line Drawing PDF Download
