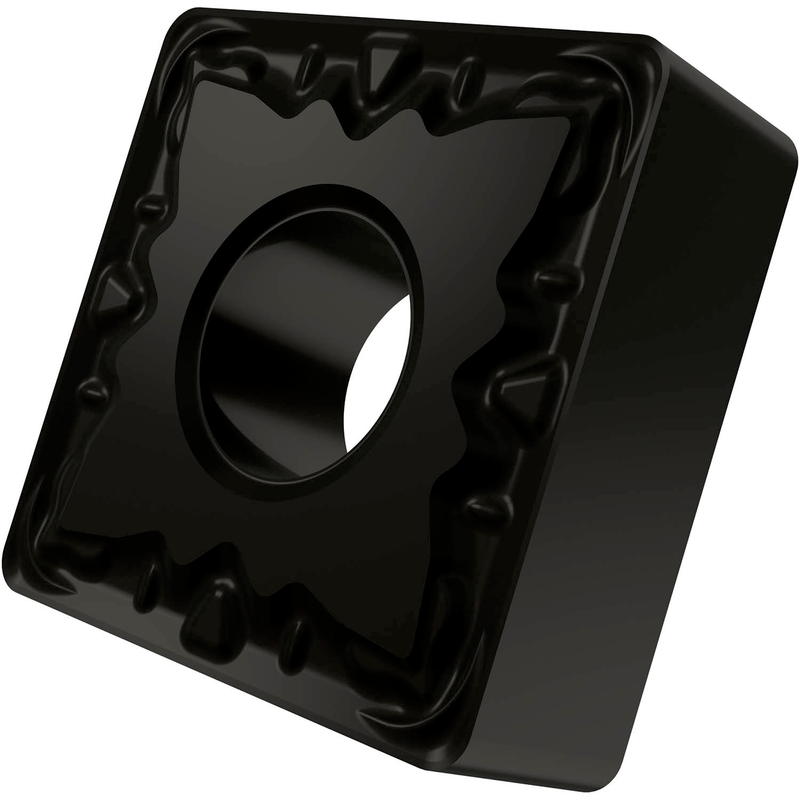

SNMG 431-FM:T9325
SNMG 431-FM:T9325

SNMG 431-FM:T9325

UGC DOR6754004
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec cercle inscrit de 1/2 po de diamètre, 3/16 po d'épaisseur, rayon de bec de 1/64 po et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15 - P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 431-FM:T9325
Product Name (ISO)SNMG 120404E-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6754004
Product FamilySNMG
Insert Geometry
Insert DesignNMDS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754004
EAN3603602893703
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 431-FM:T9325 — Line Drawing PDF Download
