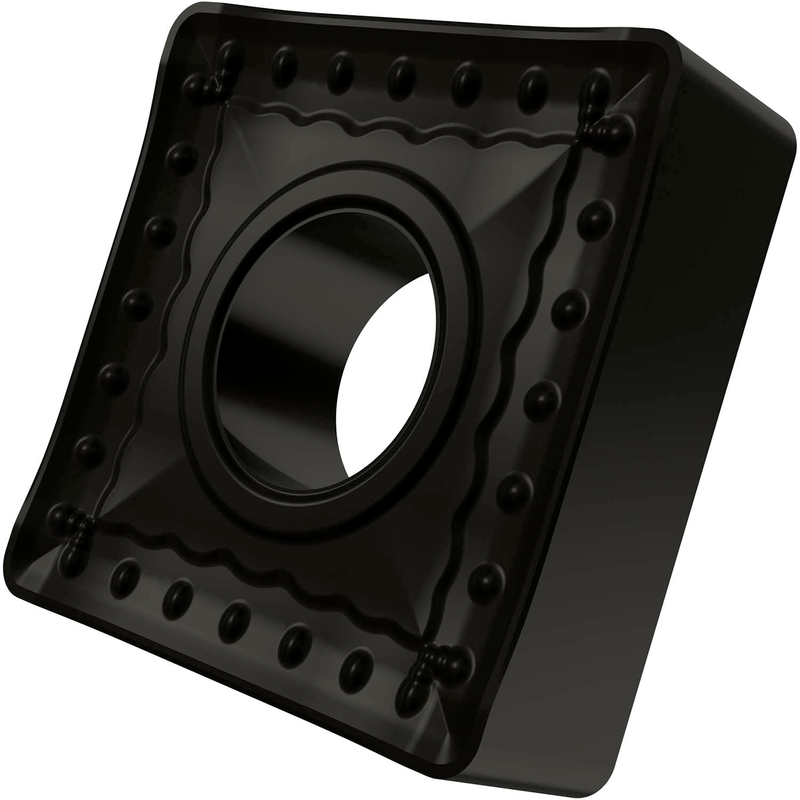

SNMM 434-OU:T9325
SNMM 434-OU:T9325

SNMM 434-OU:T9325

UGC DOR6754128
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, de diamètre de cercle inscrit de 1/2", de 3/16" d'épaisseur, rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P15 - P35, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 434-OR:T9325
Product Name (ISO)SNMM 120416E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU_
Product Number6754128
Product FamilyMNMS
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6754128
EAN3603602894946
File Type Download
SNMM 434-OU:T9325 — Line Drawing PDF Download
