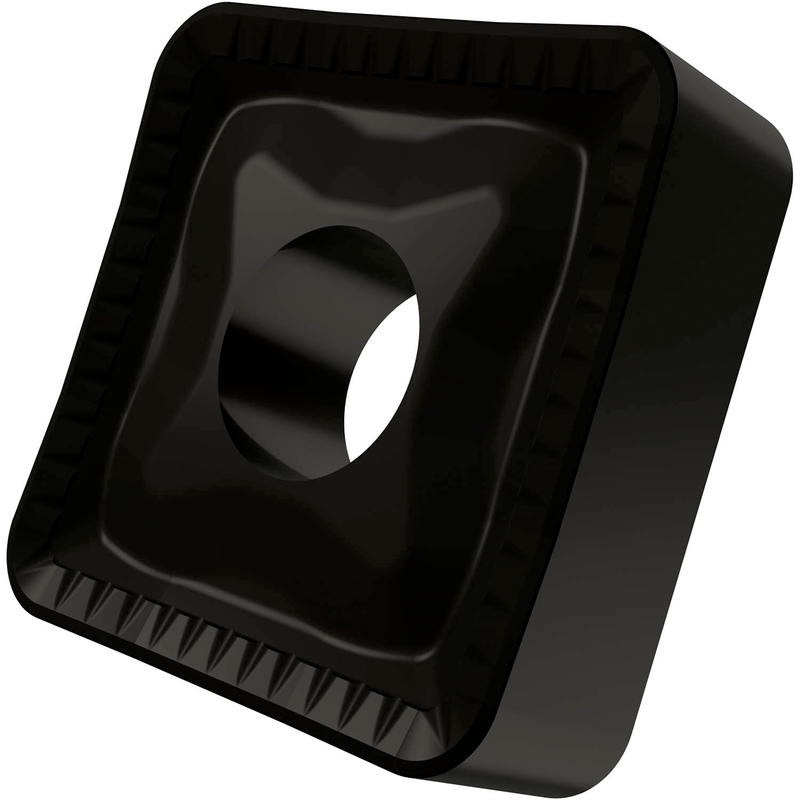

SNMM 644-HR:T9325
SNMM 644-HR:T9325

SNMM 644-HR:T9325

UGC DOR6754140
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.26 CAD - $29.26 CAD
$29.26 CAD
$29.26 CAD - $29.26 CAD
$29.26 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée, avec cercle inscrit de 3/4" de diamètre, 1/4" d'épaisseur, rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux HR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15 - P35, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-HR:T9325
Product Name (ISO)SNMM 190616E-HR:T9325
GradeT9325
Chipbreaker (CBMD)RH
Product Number6754140
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.524"
Depth of Cut Max — mm (APMX)13.3 mm
Tool Information
Reference Numbers
EDP Number6754140
EAN3603602895066
File Type Download
SNMM 644-HR:T9325 — Line Drawing PDF Download
