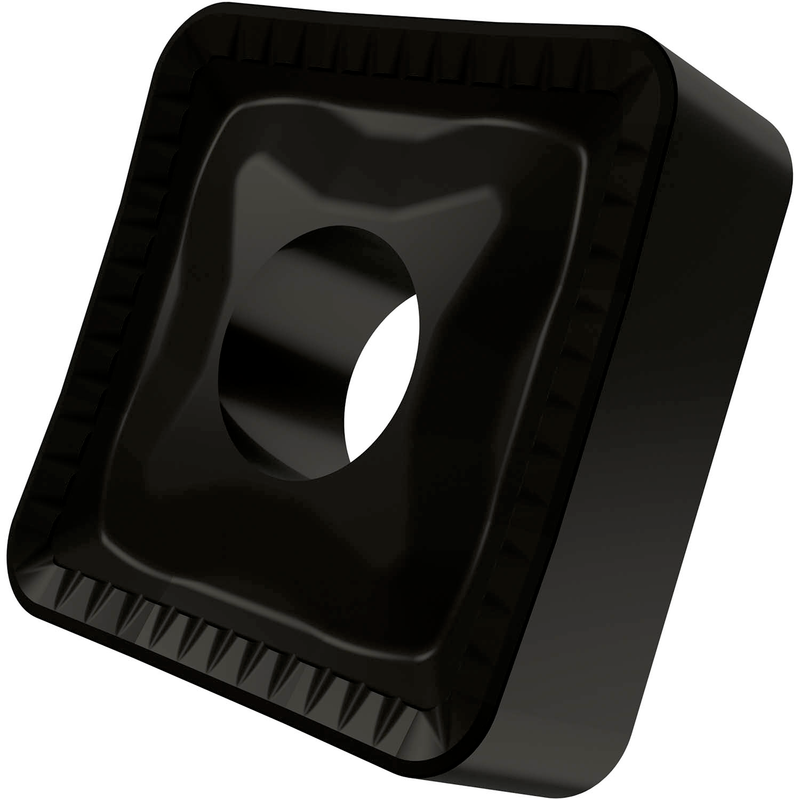

SNMM 868-HR:T9325
SNMM 868-HR:T9325

SNMM 868-HR:T9325

UGC DOR6754157
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.00 CAD - $60.00 CAD
$60.00 CAD
$60.00 CAD - $60.00 CAD
$60.00 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, carrée avec un diamètre de cercle inscrit de 1", 3/8" d'épaisseur, rayon de bec de 1/8" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux HR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15 - P35, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 868-HR:T9325
Product Name (ISO)SNMM 250932E-HR:T9325
GradeT9325
Chipbreaker (CBMD)RH
Product Number6754157
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number6754157
EAN3603602895233
File Type Download
SNMM 868-HR:T9325 — Line Drawing PDF Download
