SPMR 322-46:T9325
SPMR 322-46:T9325

SPMR 322-46:T9325

UGC DOR6754160
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.04 CAD - $11.04 CAD
$11.04 CAD
$11.04 CAD - $11.04 CAD
$11.04 CAD

Vendu en lots de : 10

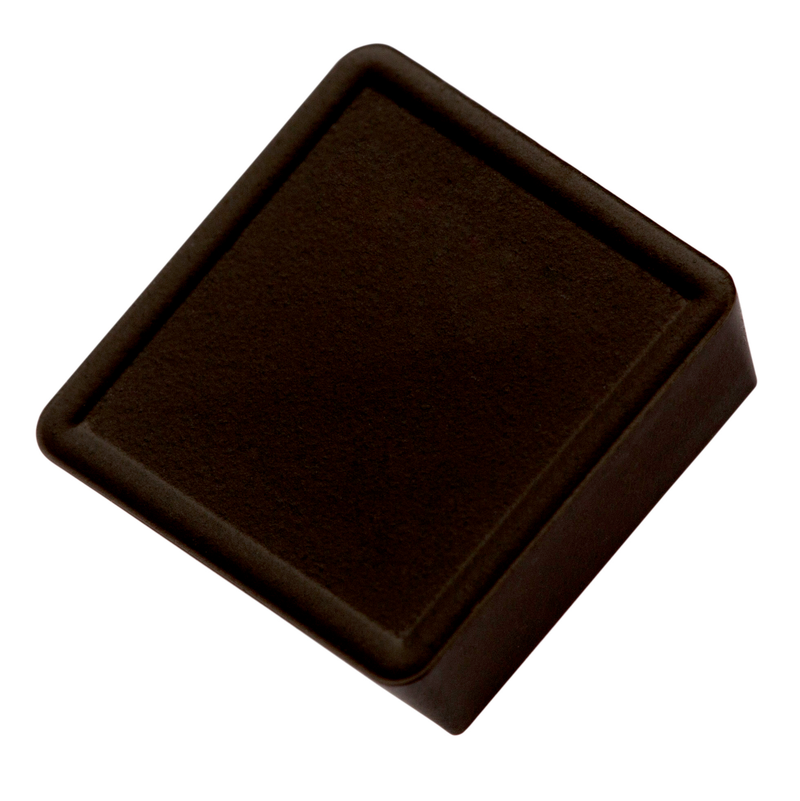

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 11°, diamètre du cercle inscrit de 3/8", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux 46, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPMR 322-46:T9325
Product Name (ISO)SPMR 090308E-46:T9325
GradeT9325
Chipbreaker (CBMD)46
Product Number6754160
Product FamilySPMR

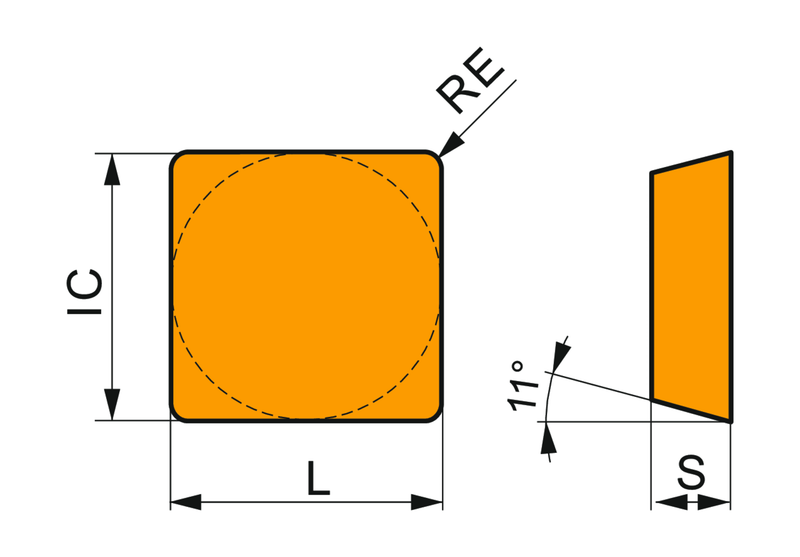

Insert Geometry
Insert DesignSPMR
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754160
EAN3603602895264
File Type Download
SPMR 322-46:T9325 — Line Drawing PDF Download
