SPMR 423-48:T9325
SPMR 423-48:T9325

SPMR 423-48:T9325

UGC DOR6754163
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.64 CAD - $16.64 CAD
$16.64 CAD
$16.64 CAD - $16.64 CAD
$16.64 CAD

Vendu en lots de : 10

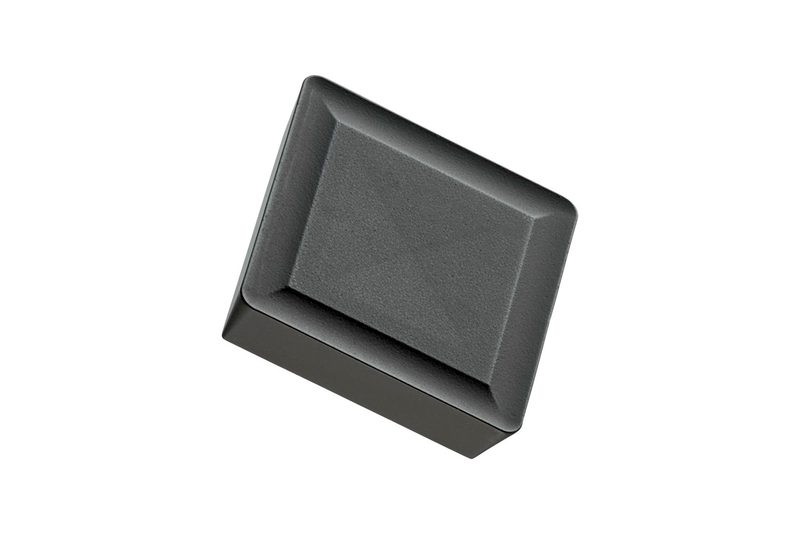

Plaquette de tournage positive simple face, carrée avec dépouille de 11°, diamètre du cercle inscrit de 1/2", 1/8" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux 48, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPMR 423-48:T9325
Product Name (ISO)SPMR 120312E-48:T9325
GradeT9325
Chipbreaker (CBMD)48
Product Number6754163
Product FamilyVAPF
Insert Geometry
Insert DesignSPMR
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6754163
EAN3603602895295
File Type Download
SPMR 423-48:T9325 — Line Drawing PDF Download
