TNMM 432-OR:T9325
TNMM 432-OR:T9325

TNMM 432-OR:T9325

UGC DOR6754170
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

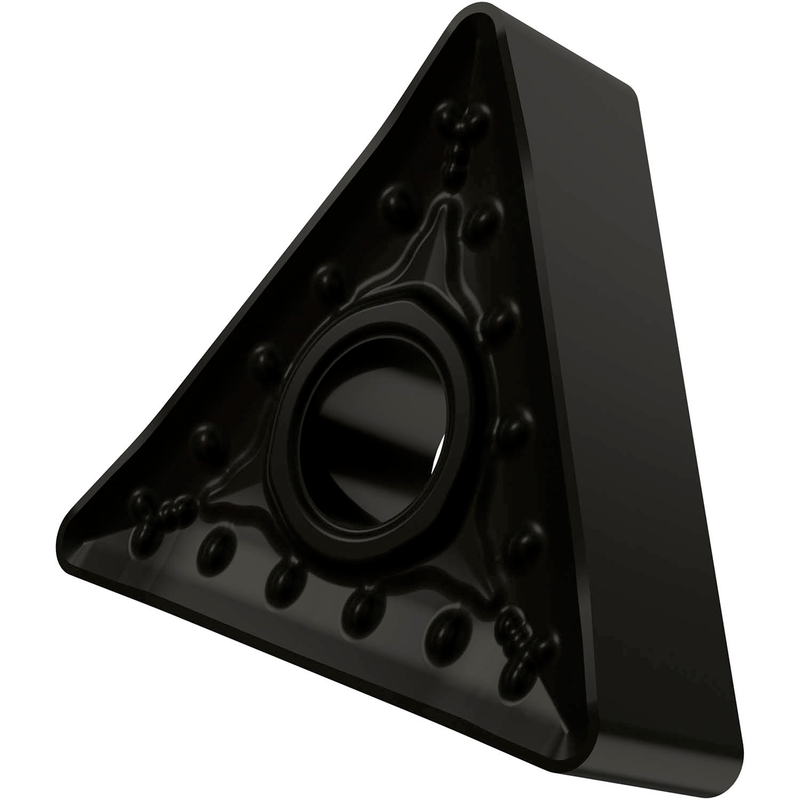

Plaquette négative double-face, triangulaire avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMM 432-OR:T9325
Product Name (ISO)TNMM 220408E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU_
Product Number6754170
Product FamilyTMNM

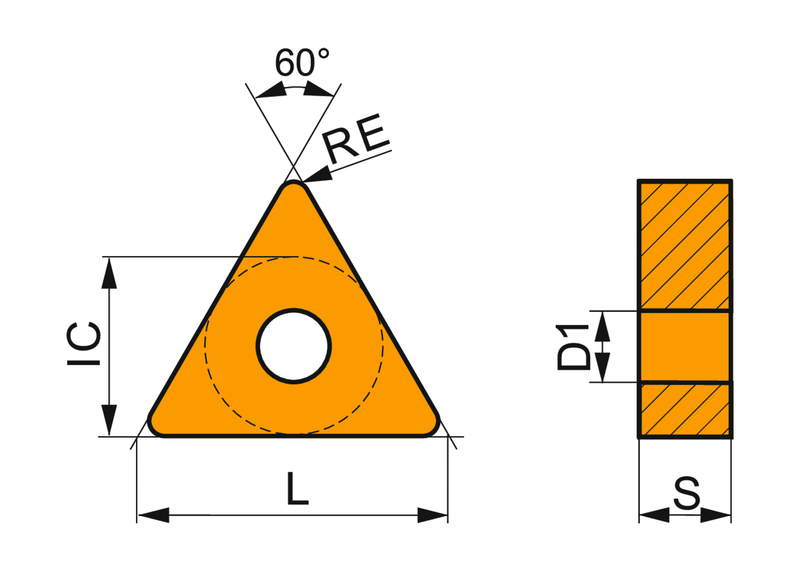

Insert Geometry
Insert DesignTNMM
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6754170
EAN3603602895363
File Type Download
TNMM 432-OR:T9325 — Line Drawing PDF Download
