TNMG 546-RM:T9325
TNMG 546-RM:T9325

TNMG 546-RM:T9325

UGC DOR6754178
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.57 CAD - $25.57 CAD
$25.57 CAD
$25.57 CAD - $25.57 CAD
$25.57 CAD

Vendu en lots de : 10

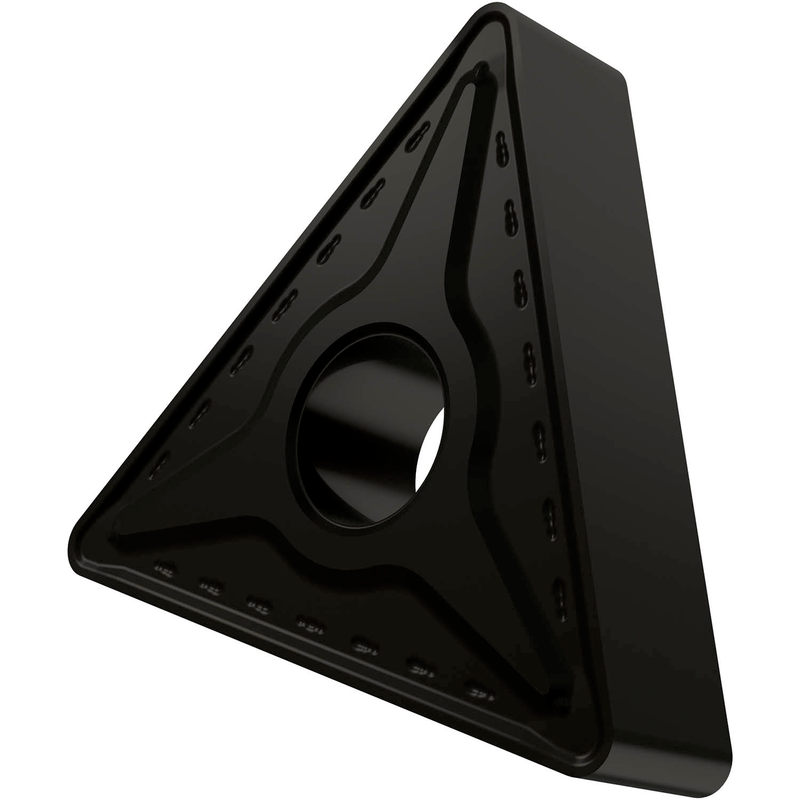

Plaquette négative double face, triangulaire, avec diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO P15-P35 et M10-M30, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 546-RM:T9325
Product Name (ISO)TNMG 270624E-RM:T9325
GradeT9325
Chipbreaker (CBMD)RM
Product Number6754178
Product FamilyTNMG

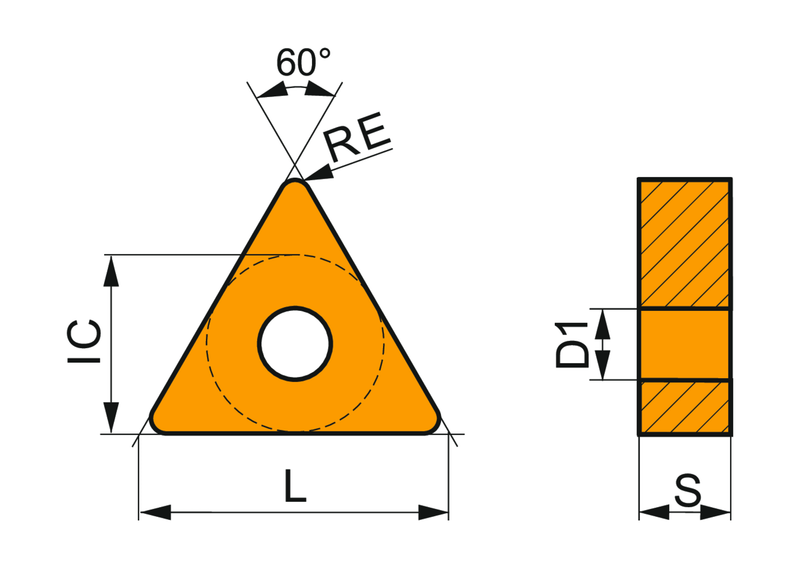

Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Reference Numbers
EDP Number6754178
EAN3603602895448
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 546-RM:T9325 — Line Drawing PDF Download
