LCMF 031604-M:T8330
LCMF 031604-M:T8330

LCMF 031604-M:T8330

UGC DOR6754269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.47 CAD - $33.47 CAD
$33.47 CAD
$33.47 CAD - $33.47 CAD
$33.47 CAD

Vendu en lots de : 10

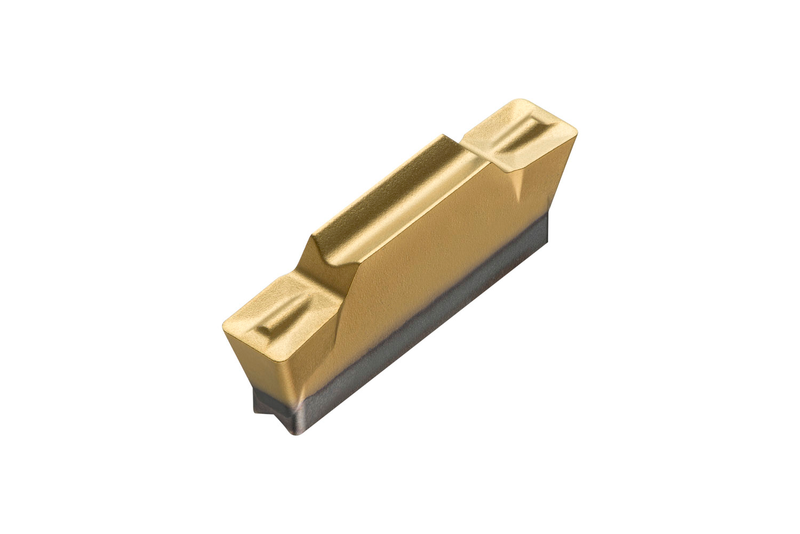

Plaquette de tronçonnage et gorge double face, longueur 16.4mm, largeur de coupe 3mm et rayons d'angle 0.4mm, précision selon la classe de tolérance-M et brise-copeaux M, nuance de carbure WC-Co à grain fin revêtu PVD T8330 dans les plages de nuances ISO P25-P40 et K20-K40 pour l'usinage de l'acier et de la fonte en combinaison avec les outils de tronçonnage et de gorge PRAMET GF..(RL) 03, GG..(RL) 03 et XLCCN 0316

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMF 031604-M:T8330
GradeT8330
Chipbreaker (CBMD)M
Product Number6754269
Product FamilyLCMF 16 - M

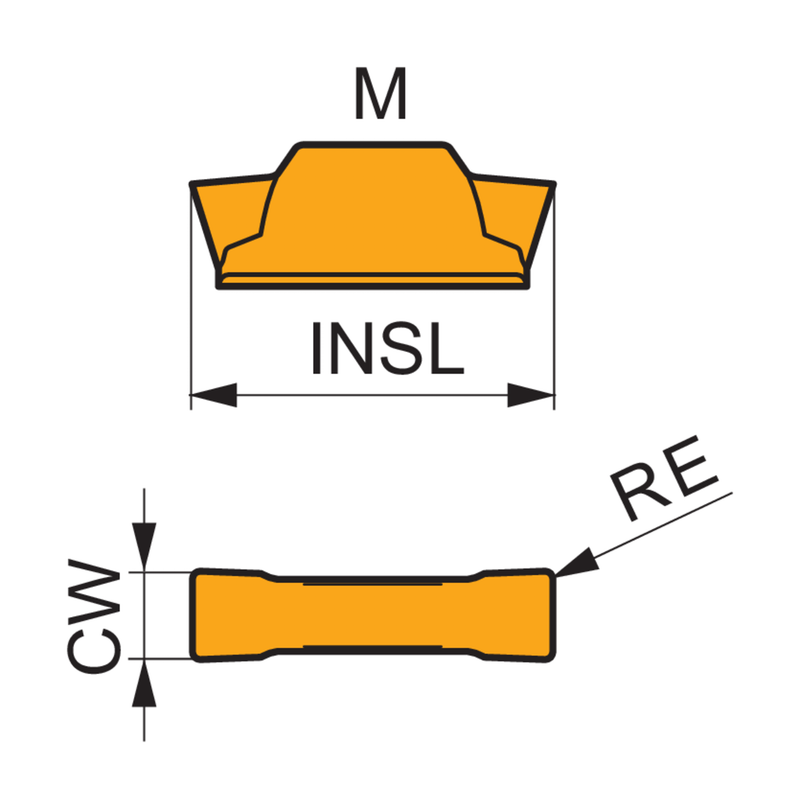

Insert Geometry
Insert DesignLCMF 16, LCMF 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6754269
EAN3603602896353
File Type Download
LCMF 031604-M:T8330 — Line Drawing PDF Download
