LCMF 041608-F:T8330
LCMF 041608-F:T8330

LCMF 041608-F:T8330

UGC DOR6754307
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.91 CAD - $34.91 CAD
$34.91 CAD
$34.91 CAD - $34.91 CAD
$34.91 CAD

Vendu en lots de : 10

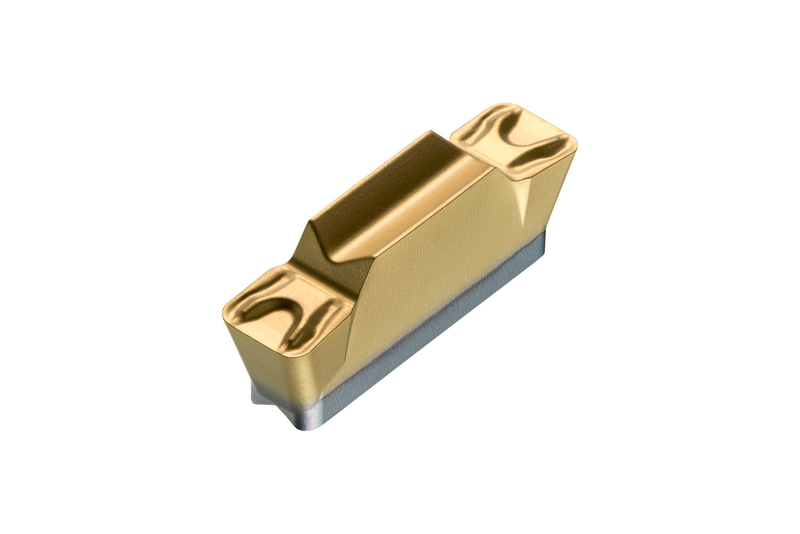

Goujure double, de 16,4 mm de long avec une largeur de coupe de 4 mm et des rayons de coin de 0,8 mm, précision selon la classe de tolérance M et brise-copeaux F, nuance de carbure WC-Co à grains fins revêtue PVD T8330 dans les gammes ISO P25-P40 et K20-K40 pour l'usinage de l'acier et de la fonte en combinaison avec les outils à tronçonner et à gorge PRAMET GF..(RL) 04, GG..(RL) 04 et XLCCN 0416

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMF 041608-F:T8330
GradeT8330
Chipbreaker (CBMD)F
Product Number6754307
Product FamilyLCMF 16, LCMF 30 - F
Insert Geometry
Insert DesignLCMF 16, LCMF 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6754307
EAN3603602896735
File Type Download

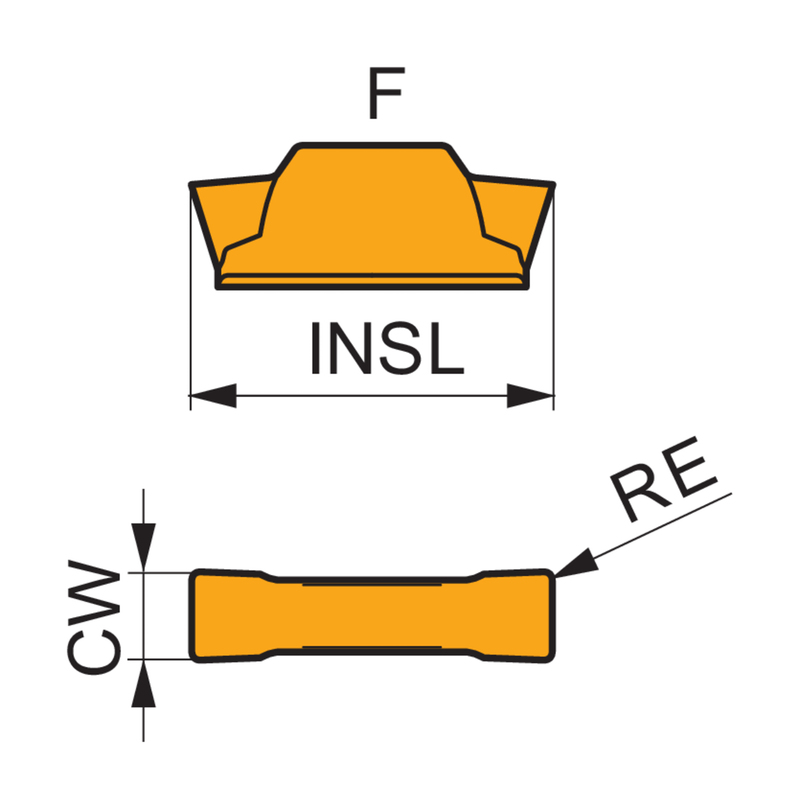

LCMF 041608-F:T8330 — Line Drawing PDF Download
