LCMF 0416MO-MP:T8330
LCMF 0416MO-MP:T8330

LCMF 0416MO-MP:T8330

UGC DOR6754309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.50 CAD - $36.50 CAD
$36.50 CAD
$36.50 CAD - $36.50 CAD
$36.50 CAD

Vendu en lots de : 10

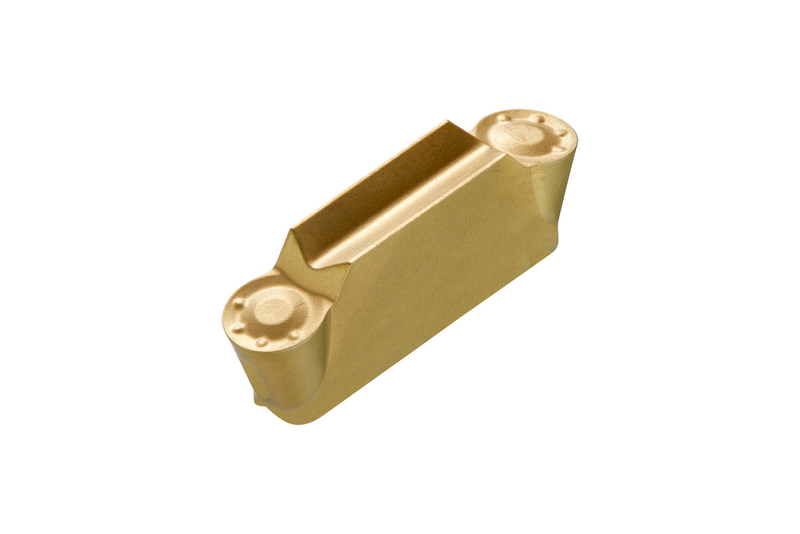

Plaquette de tronçonnage et gorge double face, longueur 16,4 mm, largeur de coupe 4 mm et rayon entier 2 mm, précision selon la classe de tolérance M et brise-copeaux MP, nuance de carbure WC-Co à grain fin revêtu PVD T8330 dans les plages de nuances ISO P25-P40 et K20-K40 pour l'usinage de l'acier et de la fonte en combinaison avec les outils de tronçonnage et de gorge PRAMET GF..(RL) 04, GG..(RL) 04 et XLCCN 0416

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMF 0416MO-MP:T8330
GradeT8330
Chipbreaker (CBMD)Député
Product Number6754309
Product FamilyLCMF 16, LCMF 30 - Député
Insert Geometry
Insert DesignLCMF 16, LCMF 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.079"
Tool Information
Reference Numbers
EDP Number6754309
EAN3603602896759
File Type Download

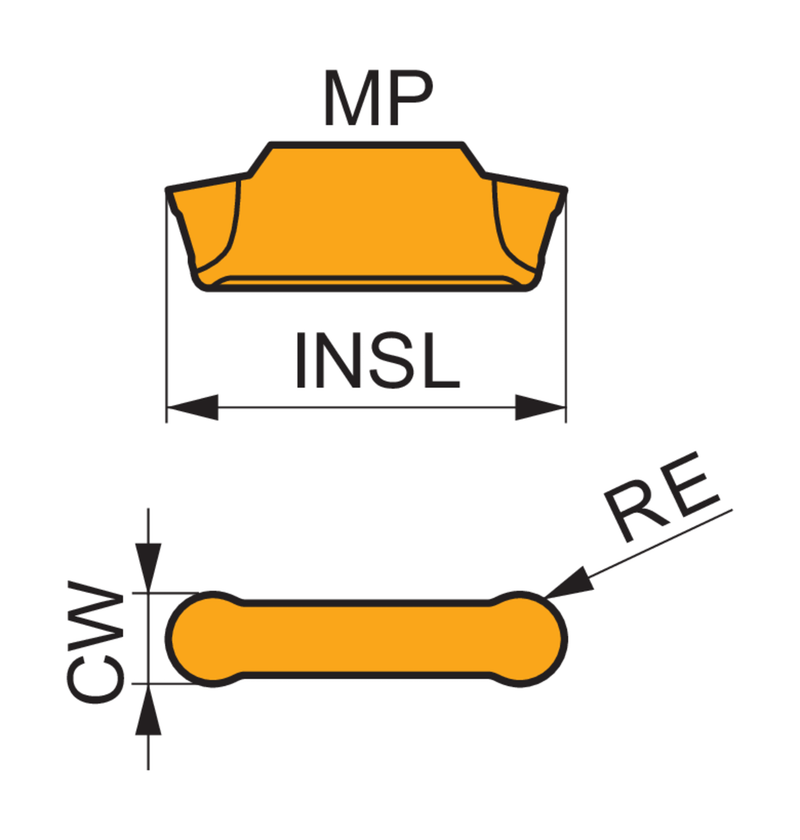

LCMF 0416MO-MP:T8330 — Line Drawing PDF Download
