VNMG 332-M:T9325
VNMG 332-M:T9325

VNMG 332-M:T9325

UGC DOR6754438
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

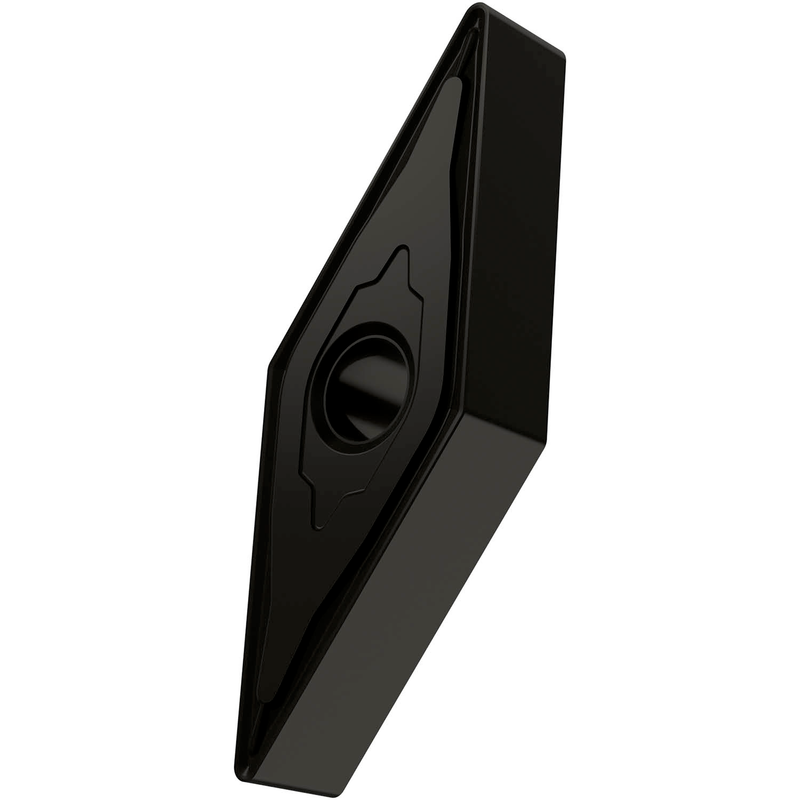

Plaquette amovible double face négative, rhomboïde 35° avec diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux M, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 332-M:T9325
Product Name (ISO)VNMG 160408E-M:T9325
GradeT9325
Chipbreaker (CBMD)M
Product Number6754438
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - Angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754438
EAN3603602898043
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
VNMG 332-M:T9325 — Line Drawing PDF Download
