WCMT 32.51-FM:T9325
WCMT 32.51-FM:T9325

WCMT 32.51-FM:T9325

UGC DOR6754442
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.61 CAD - $18.61 CAD
$18.61 CAD
$18.61 CAD - $18.61 CAD
$18.61 CAD

Vendu en lots de : 10

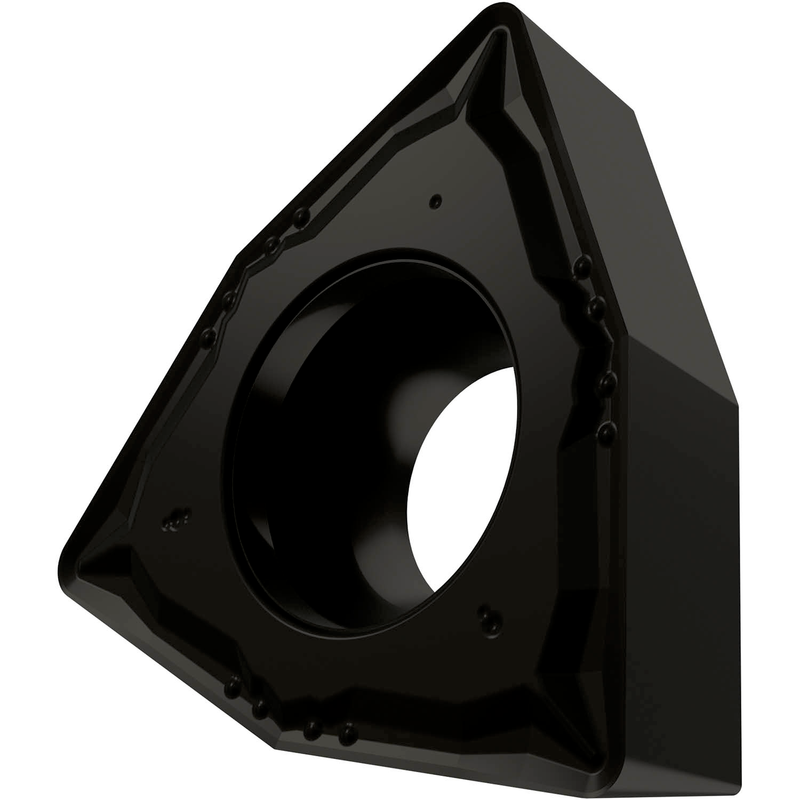

Plaquette de tournage positive simple face, trigonale 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 32.51-FM:T9325
Product Name (ISO)WCMT 06T304E-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6754442
Product FamilyCMTC
Insert Geometry
Insert DesignCMTM
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754442
EAN3603602898081
File Type Download
WCMT 32.51-FM:T9325 — Line Drawing PDF Download
